Honda SH 150 2002

2002 Honda SH 150 specifications, pictures, reviews and rating

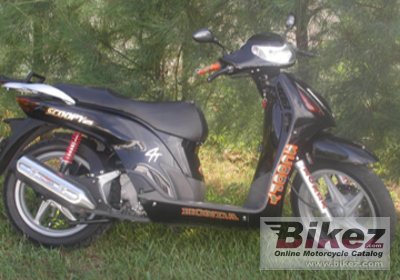

Picture submitted by anonymous user.. Click to submit more pictures.

2002 Honda SH 150

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
Tip a friend
List related bikes

General information
Model:	Honda SH 150
Year:	2002
Category:	Scooter
Rating:	69.7 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:	153.00 ccm (9.34 cubic inches)
Engine type:	Single cylinder, four-stroke
Power:	15.90 HP (11.6 kW)) @ 8500 RPM
Torque:	14.20 Nm (1.4 kgf-m or 10.5 ft.lbs) @ 7000 RPM
Compression:	11.0:1
Bore x stroke:	58.0 x 57.8 mm (2.3 x 2.3 inches)
Fuel system:	Carburettor
Gearbox:	Automatic
Chassis, suspension, brakes and wheels
Front wheel travel:	120 mm (4.7 inches)
Rear wheel travel:	70 mm (2.8 inches)
Front tyre:	100/80-16 50P
Rear tyre:	120/80-16 60P
Front brakes:	Single disc
Front brakes diameter:	220 mm (8.7 inches)
Rear brakes:	Expanding brake
Rear brakes diameter:	130 mm (5.1 inches)
Physical measures and capacities
Dry weight:	123.1 kg (271.4 pounds)
Power/weight ratio:	0.1292 HP/kg
Seat height:	780 mm (30.7 inches) If adjustable, lowest setting.
Overall height:	1,145 mm (45.1 inches)
Overall length:	2,020 mm (79.5 inches)
Overall width:	705 mm (27.8 inches)
Ground clearance:	126 mm (5.0 inches)
Wheelbase:	1,335 mm (52.6 inches)
Fuel capacity:	8.30 litres (2.19 gallons)
Other specifications
Further information
Insurance costs	Get estimated US insurance cost with a quote from Allstate Motorcycle Insurance.
Parts finder	Chaparral provides online schematics & OEM parts for the US. Motorcycle Superstore provides an easy-to-use parts finder. Ships to the US, Canada, UK and Australia. CMSNL ships low cost OEM motorcycle parts to Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, The Netherlands, New Zealand, Norway, Poland, Portugal, South Africa, Spain, Sweden, Switzerland, Taiwan, Ukraine, United Kingdom, The United States and more. Also check out our overview of motorcycle webshops at Bikez.info.
Ask questions	Join the 02 Honda SH 150 discussion group or the general Honda discussion group.
Loans, tests, etc	Search the web for dealers, loan costs, tests, customizing, etc.
Related bikes	List related bikes for comparison of specs.

General information

Model:

Honda SH 150

Year:

2002

Category:

Scooter

Rating:

69.7 out of 100. Show full rating and compare with other bikes

Engine and transmission

Displacement:

153.00 ccm (9.34 cubic inches)

Engine type:

Single cylinder, four-stroke

Power:

15.90 HP (11.6 kW)) @ 8500 RPM

Torque:

14.20 Nm (1.4 kgf-m or 10.5 ft.lbs) @ 7000 RPM

Compression:

11.0:1

Bore x stroke:

58.0 x 57.8 mm (2.3 x 2.3 inches)

Fuel system:

Carburettor

Gearbox:

Automatic

Chassis, suspension, brakes and wheels

Front wheel travel:

120 mm (4.7 inches)

Rear wheel travel:

70 mm (2.8 inches)

Front tyre:

100/80-16 50P

Rear tyre:

120/80-16 60P

Front brakes:

Single disc

Front brakes diameter:

220 mm (8.7 inches)

Rear brakes:

Expanding brake

Rear brakes diameter:

130 mm (5.1 inches)

Physical measures and capacities

Dry weight:

123.1 kg (271.4 pounds)

Power/weight ratio:

0.1292 HP/kg

Seat height:

780 mm (30.7 inches) If adjustable, lowest setting.

Overall height:

1,145 mm (45.1 inches)

Overall length:

2,020 mm (79.5 inches)

Overall width:

705 mm (27.8 inches)

Ground clearance:

126 mm (5.0 inches)

Wheelbase:

1,335 mm (52.6 inches)

Fuel capacity:

8.30 litres (2.19 gallons)

Other specifications
