13 Honda FourTrax Foreman Rubicon specificationsHonda FourTrax Foreman Rubicon 2013

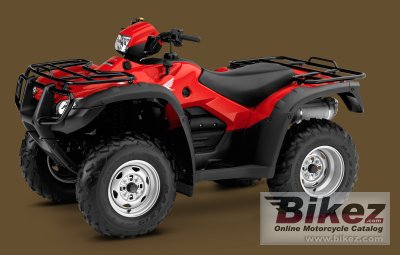

2013 Honda FourTrax Foreman Rubicon photo
Picture credits - Honda. Click to submit more pictures.
   Show big 2013 Honda FourTrax Foreman Rubicon imageShow more 2013 Honda FourTrax Foreman Rubicon images
2013 Honda FourTrax Foreman Rubicon

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Honda's profilation of this bike
Some smart guys arenít very strong. And some strong guys arenít exactly brain surgeons. Then there are those who break out of the stereotypes. And in the world of ATVs, thatís the Honda FourTrax Foreman Rubicon. Its engine is a real powerhouse that delivers tons of torque. But the longitudinal layout and exclusive Hondamatic transmission makes smart use of that power and makes sure it all gets applied to the job at hand.

General information
Model:Honda FourTrax Foreman Rubicon
Year:2013
Category:ATV
Rating:Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating.
Price as new (MSRP):US$ 7999. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:499.00 ccm (30.45 cubic inches)
Engine type:Single cylinder, four-stroke
Power:669.17 HP (488.4 kW))
Bore x stroke:92.0 x 75.0 mm (3.6 x 3.0 inches)
Fuel system:Carburettor. 36mm constant velocity carburetor
Fuel control:OHV
Ignition:CD with electronic advance
Lubrication system:Dry sump
Cooling system:Liquid
Gearbox:Automatic
Transmission type,
final drive:
Shaft drive (cardan)
Driveline:Direct front and rear driveshafts with TraxLokģ and torque-sensitive front differential
Emission details:Meets current California Air Resources Board (CARB) off-road emissions standards.
Chassis, suspension, brakes and wheels
Front suspension:Independent double-wishbone
Front suspension travel:170 mm (6.7 inches)
Rear suspension:Swingarm with dual shock absorbers
Rear suspension travel:170 mm (6.7 inches)
Front tyre dimensions:25/8-12
Rear tyre dimensions:25/8-12
Front brakes:Single disc. 0
Front brakes diameter:180 mm (7.1 inches)
Rear brakes:Expanding brake (drum brake)
Rear brakes diameter:499 mm (19.6 inches)
Physical measures and capacities
Weight incl. oil, gas, etc:290.3 kg (640.0 pounds)
Seat height:861 mm (33.9 inches) If adjustable, lowest setting.
Overall height:1,179 mm (46.4 inches)
Overall length:2,108 mm (83.0 inches)
Overall width:1,189 mm (46.8 inches)
Ground clearance:191 mm (7.5 inches)
Wheelbase:1,285 mm (50.6 inches)
Fuel capacity:15.14 litres (4.00 gallons)
Other specifications
Starter:Electric
Factory warranty:One year. Unlimited milage. Transferable.
Color options:Automatic
Comments:Model ID: TRX500FA
