12 Honda DN-01 specificationsHonda DN-01 2012

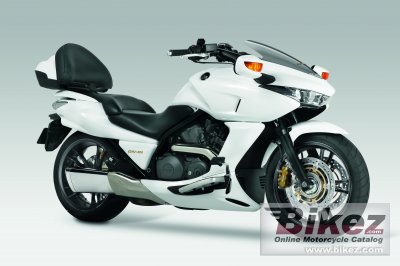

2012 Honda DN-01 photo
Picture credits - Honda. Click to submit more pictures.
   Show big 2012 Honda DN-01 imageShow more 2012 Honda DN-01 images
2012 Honda DN-01

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Honda's profilation of this bike
It’s like nothing you’ve ever seen on two wheels. And for good reason: Honda’s stunning new DN-01 is in a class of its own—the world’s first crossover bike. Its styling and seating position alone set it completely apart, showing influence from the world of our sportbikes, sport touring machines, and cruisers. But underneath that bodywork the DN-01 is even more revolutionary, offering Honda’s radical new Human Friendly Transmission.

General information
Model:Honda DN-01
Year:2012
Category:Allround
Rating:68.2 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 15599. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:680.00 ccm (41.49 cubic inches)
Engine type:V2, four-stroke
Engine details:52 degree V-twin
Compression:10.0:1
Bore x stroke:81.0 x 66.0 mm (3.2 x 2.6 inches)
Valves per cylinder:4
Fuel system:Injection. PGM-FI with automatic enrichment circuit, 40mm throttle bodies and 12-hole injectors
Fuel control:SOHC
Ignition:Digital transistorized with electronic advance
Cooling system:Liquid
Gearbox:6-speed
Transmission type,
final drive:
Shaft drive (cardan)
Emission details:Meets current California Air Resources Board (CARB) and EPA standards
Chassis, suspension, brakes and wheels
Rake (fork angle):28.5°
Trail:114 mm (4.5 inches)
Front suspension:41mm telescopic fork with 4.2 inches travel
Rear suspension:Pro Arm single-side swingarm with single shock, seven-position spring preload adjustability
Rear suspension travel:119 mm (4.7 inches)
Front tyre dimensions:130/70-ZR17
Rear tyre dimensions:190/50-ZR17
Front brakes:Double disc. ABS. CBS three-piston calipers.
Front brakes diameter:296 mm (11.7 inches)
Rear brakes:Single disc. ABS. CBS three-piston calipers.
Rear brakes diameter:276 mm (10.9 inches)
Physical measures and capacities
Weight incl. oil, gas, etc:269.9 kg (595.0 pounds)
Seat height:691 mm (27.2 inches) If adjustable, lowest setting.
Wheelbase:1,605 mm (63.2 inches)
Fuel capacity:15.14 litres (4.00 gallons)
Other specifications
Starter:Electric
Color options:Candy Dark Red, Black
Comments:Model ID: NSA700A
Further information
Parts and accessories Our partner CMSNL ships low cost OEM motorcycle parts to Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, The Netherlands, New Zealand, Norway, Poland, Portugal, Serbia, Slovakia, Slovenia, South Africa, Spain, Sweden, Switzerland, Taiwan, Ukraine, United Kingdom, The United States and more. Or check out parts and accessories from our other partners.
Ask questionsJoin the 12 Honda DN-01 discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Free motorcycle classifieds

Click here to sell a used 2012 Honda DN-01 or advertise any other MC for sale. You can list all available Honda DN-01 bikes and also sign up for e-mail notification when such motorcycles are advertised in the future. Ads with or without pictures are easy to create. Our classifieds are completely free with sections for every country in the world.

You can also check out our list of related motorbikes. Compare technical data. Look at photos. View your fellow riders' rating of the bike's reliability, design, engine performance, accident risk, repair cost, etc.


Rating sample for this Honda bike
Fun-factor for the 2012 Honda DN-01:


(80.2 out of 100)

Click here for complete rating. You can also compare bikes.
