09 Honda CRF230L specificationsHonda CRF230L 2009

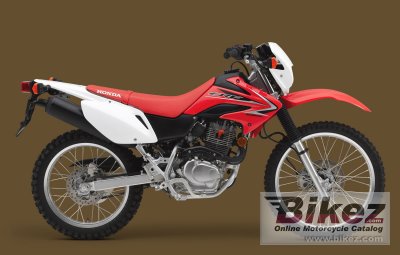

2009 Honda CRF230L photo
Picture credits - Honda. Click to submit more pictures.
   Show big 2009 Honda CRF230L image
2009 Honda CRF230L

Discuss this bike
Rate this motorbike
This bike's rating
1 review available
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Honda's profilation of this bike
It´s hard knowing where to begin when describing the CRF230L. First, it´s a dirtbike that happens to be street-legal, so it has the goods—223cc single-cylinder engine, six-speed gearbox, lightweight chassis, Pro-Link® rear suspension, turn signals—to take you anywhere, on-road or off.

General information
Model:Honda CRF230L
Year:2009
Category:Enduro / offroad
Rating:73.1 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 3699. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:223.00 ccm (13.61 cubic inches)
Engine type:Single cylinder, four-stroke
Compression:9.0:1
Bore x stroke:65.5 x 66.2 mm (2.6 x 2.6 inches)
Fuel system:Carburettor. 30mm CV carburetor
Fuel control:SOHC
Ignition:CD
Cooling system:Air
Gearbox:6-speed
Transmission type,
final drive:
Chain
Chassis, suspension, brakes and wheels
Rake (fork angle):26.8°
Trail:103 mm (4.1 inches)
Front suspension:37mm leading-axle Showa fork
Front suspension travel:229 mm (9.0 inches)
Rear suspension:Pro-link Showa single shock with adjustable spring preload
Rear suspension travel:160 mm (6.3 inches)
Front tyre dimensions:80/21-21
Rear tyre dimensions:120/80-18
Front brakes:Single disc
Front brakes diameter:240 mm (9.4 inches)
Rear brakes:Single disc
Rear brakes diameter:220 mm (8.7 inches)
Physical measures and capacities
Weight incl. oil, gas, etc:121.1 kg (267.0 pounds)
Seat height:810 mm (31.9 inches) If adjustable, lowest setting.
Ground clearance:241 mm (9.5 inches)
Wheelbase:1,340 mm (52.8 inches)
Fuel capacity:8.70 litres (2.30 gallons)
Other specifications
Starter:Electric
Color options:Red
Comments:Model ID: CRF230L
