| General information |
|---|

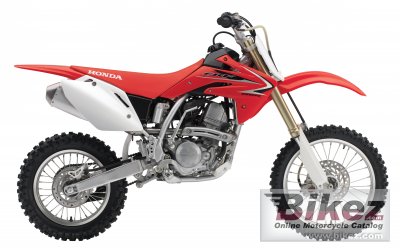

| Model: | Honda CRF150R |
| Year: | 2013 |
| Category: | Cross / motocross |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Price as new (MSRP): | US$ 4990. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 149.00 ccm (9.09 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Compression: | 11.7:1 |
| Bore x stroke: | 66.0 x 43.7 mm (2.6 x 1.7 inches) |
| Fuel system: | Carburettor. Keihin® 32mm flat slide with Throttle Position Sensor (TPS) |
| Fuel control: | Single Overhead Cams (SOHC) |
| Ignition: | Solid-state CD with electronic advance |
| Cooling system: | Liquid |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Chain |
| Driveline: | #420 chain; 15T/50T |
| Emission details: | Consult owners manual for optional racing parts. |
| Chassis, suspension, brakes and wheels |
|---|
| Rake (fork angle): | 27.0° |
| Trail: | 78 mm (3.1 inches) |
| Front suspension: | 37mm fully adjustable leading-axle inverted Showa® cartridge fork; 10.8 inches travel |
| Rear suspension: | Pro-Link® fully adjustable Showa single shock; 10.7 inches travel |
| Front tyre: | 70/100-17 |
| Rear tyre: | 90/100-14 |
| Front brakes: | Single disc |
| Front brakes diameter: | 220 mm (8.7 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 190 mm (7.5 inches) |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 83.9 kg (185.0 pounds) |
| Seat height: | 833 mm (32.8 inches) If adjustable, lowest setting. |
| Ground clearance: | 302 mm (11.9 inches) |
| Wheelbase: | 1,260 mm (49.6 inches) |
| Fuel capacity: | 4.20 litres (1.11 gallons) |
| Other specifications |
|---|
| Color options: | Red |
| Comments: | Model ID: CRF150R |
