| Honda's profilation of this bike |
| An all-new design, the CB500R is built with a high-performance, liquid-cooled 500cc DOHC parallel-twin engine that offers plenty of accessible power. Honda twins have always been some of the best motorcycle engines anywhere—reliable, efficient, and fun to ride. |
| General information |
|---|

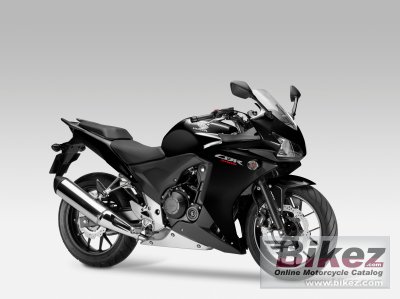

| Model: | Honda CBR500R ABS | | Year: | 2013 | | Category: | Sport | | Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. | | Price as new (MSRP): | US$ 5999. Prices depend on country, taxes, accessories, etc. | | Engine and transmission |
|---|
| Displacement: | 500.00 ccm (30.51 cubic inches) | | Engine type: | In-line four, four-stroke | | Compression: | 10.7:1 | | Bore x stroke: | 67.0 x 66.8 mm (2.6 x 2.6 inches) | | Valves per cylinder: | 4 | | Fuel system: | Injection. PGM-FI with 34mm throttle bodies | | Fuel control: | DOHC | | Ignition: | Computer-controlled digital transistorized with electronic advance | | Cooling system: | Liquid | | Gearbox: | 6-speed | Transmission type,
final drive: | Chain | | Driveline: | O-ring-sealed chain | | Emission details: | Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment. | | Chassis, suspension, brakes and wheels |
|---|
| Rake (fork angle): | 25.5° | | Trail: | 103 mm (4.1 inches) | | Front suspension: | 41mm fork | | Front suspension travel: | 122 mm (4.8 inches) | | Rear suspension: | Pro-Link single shock with nine-position spring preload adjustability | | Rear suspension travel: | 104 mm (4.1 inches) | | Front tyre dimensions: | 120/70-17 | | Rear tyre dimensions: | 160/60-17 | | Front brakes: | Double disc. ABS. Wave disc. Two-piston calipers. | | Front brakes diameter: | 320 mm (12.6 inches) | | Rear brakes: | Single disc. ABS. Wave disc. Single-piston caliper. | | Rear brakes diameter: | 240 mm (9.4 inches) | | Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 194.6 kg (429.0 pounds) | | Seat height: | 785 mm (30.9 inches) If adjustable, lowest setting. | | Wheelbase: | 1,410 mm (55.5 inches) | | Fuel capacity: | 15.52 litres (4.10 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Factory warranty: | One year. Unlimited milage. Transferable. | | Color options: | Black, Pearl White/Blue/Red, Red | | Comments: | Model ID: CBR500RA | | Further information |
|---|
