| General information |
|---|

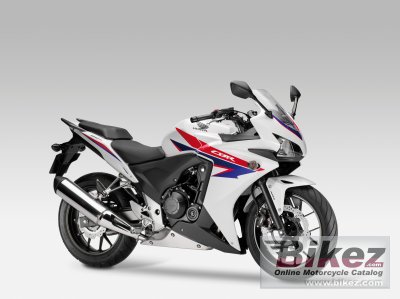

| Model: | Honda CBR500R |
| Year: | 2013 |
| Category: | Sport |
| Rating: | 66.6 out of 100. Show full rating and compare with other bikes |
| Price as new (MSRP): | US$ 5999. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 500.00 ccm (30.51 cubic inches) |
| Engine type: | In-line four, four-stroke |
| Compression: | 10.7:1 |
| Bore x stroke: | 67.0 x 66.8 mm (2.6 x 2.6 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. PGM-FI with 34mm throttle bodies |
| Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition: | Computer-controlled digital transistorized with electronic advance |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Driveline: | O-ring-sealed chain |
| Emission details: | Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment. |
| Chassis, suspension, brakes and wheels |
|---|
| Rake (fork angle): | 25.5° |
| Trail: | 103 mm (4.1 inches) |
| Front suspension: | 41mm fork |
| Front wheel travel: | 122 mm (4.8 inches) |
| Rear suspension: | Pro-Link single shock with nine-position spring preload adjustability |
| Rear wheel travel: | 104 mm (4.1 inches) |
| Front tyre: | 120/70-17 |
| Rear tyre: | 160/60-17 |
| Front brakes: | Double disc. Wave disc. Two-piston calipers. |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. Wave disc. Single-piston caliper. |
| Rear brakes diameter: | 240 mm (9.4 inches) |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 192.8 kg (425.0 pounds) |
| Seat height: | 785 mm (30.9 inches) If adjustable, lowest setting. |
| Wheelbase: | 1,410 mm (55.5 inches) |
| Fuel capacity: | 15.52 litres (4.10 gallons) |
| Other specifications |
|---|
| Color options: | Black, Pearl White/Blue/Red, Red |
| Starter: | Electric |
| Factory warranty: | One year. Unlimited milage. Transferable. |
| Comments: | Model ID: CBR500R |
