| Highland's profilation of this bike |
| The Highland engineers and executives are racers. It is no wonder why they have been quietly designing the fastest and most innovative motors and chassis for the largest motorcycle companies in the world for the past 12 years. |
| General information |
|---|

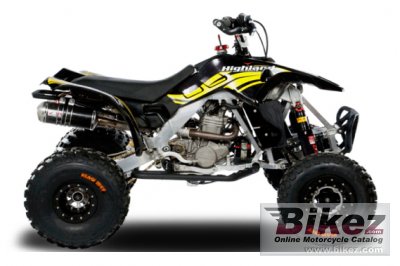

| Model: | Highland 507cc ATX Quad Racer |
| Year: | 2011 |
| Category: | ATV |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 507.00 ccm (30.94 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. EFI, fully adjustable |
| Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition: | Digital, coil on plug |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet, multiplate |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Aluminium |
| Front suspension: | Elka |
| Front wheel travel: | 300 mm (11.8 inches) |
| Rear suspension: | Elka |
| Front brakes: | Single disc |
| Rear brakes: | Single disc |
| Physical measures and capacities |
|---|
| Seat height: | 813 mm (32.0 inches) If adjustable, lowest setting. |
| Overall width: | 1,016 mm (40.0 inches) |
| Ground clearance: | 127 mm (5.0 inches) |
| Wheelbase: | 1,245 mm (49.0 inches) |
| Fuel capacity: | 7.57 litres (2.00 gallons) |
| Other specifications |
|---|
| Color options: | Black/yellow |
| Starter: | Electric |
| Modifications compared to previous model: | Also called USHighland 507 ATX QuadRacer. |
