| General information |
|---|

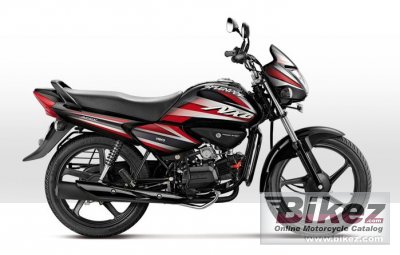

| Model: | Hero Splendor NXG |
| Year: | 2013 |
| Category: | Sport |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 97.50 ccm (5.95 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 7.37 HP (5.4 kW)) @ 8000 RPM |
| Torque: | 8.04 Nm (0.8 kgf-m or 5.9 ft.lbs) @ 4500 RPM |
| Compression: | 9.0:1 |
| Bore x stroke: | 50.0 x 49.5 mm (2.0 x 1.9 inches) |
| Fuel system: | Carburettor. Side Draft, Variable Venturi Type |
| Fuel control: | OHC |
| Ignition: | Digital CDI |
| Cooling system: | Air |
| Gearbox: | 4-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet, multidisc |
| Driveline: | Constant mesh |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tubular double cradle |
| Front suspension: | Telescopic hydraulic shock absorbers |
| Rear suspension: | Swing arm with hydraulic shock absorbers |
| Front tyre dimensions: | 2.75-18 |
| Rear tyre dimensions: | 2.75-18 |
| Front brakes: | Expanding brake (drum brake) |
| Front brakes diameter: | 130 mm (5.1 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Rear brakes diameter: | 110 mm (4.3 inches) |
| Wheels: | Spoke wheel or cast wheel |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 112.0 kg (246.9 pounds) |
| Seat height: | 785 mm (30.9 inches) If adjustable, lowest setting. |
| Overall height: | 1,095 mm (43.1 inches) |
| Overall length: | 1,965 mm (77.4 inches) |
| Overall width: | 720 mm (28.3 inches) |
| Ground clearance: | 160 mm (6.3 inches) |
| Fuel capacity: | 9.50 litres (2.51 gallons) |
| Reserve fuel capacity: | 1.80 litres (0.48 gallons) |
| Other specifications |
|---|
| Starter: | Electric & kick |
| Light: | 12V 35W/35W halogen headlight |
| Electrical: | 12V 3Ah battery |
| Color options: | Black, red, silver, blue. All with stripes. |
| Comments: | Sold in India. Brand previously called Hero Honda. |
