| General information |
|---|

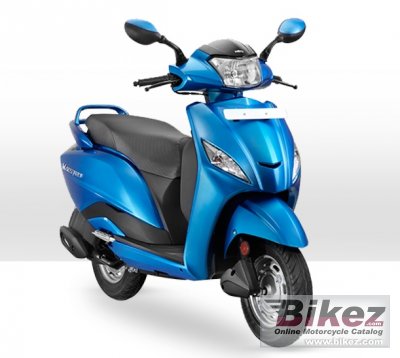

| Model: | Hero Maestro |
| Year: | 2013 |
| Category: | Scooter |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 109.00 ccm (6.65 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 8.05 HP (5.9 kW)) @ 7500 RPM |
| Torque: | 9.10 Nm (0.9 kgf-m or 6.7 ft.lbs) @ 5500 RPM |
| Compression: | 9.0:1 |
| Bore x stroke: | 50.0 x 52.0 mm (2.0 x 2.0 inches) |
| Fuel system: | Carburettor |
| Fuel control: | OHC |
| Ignition: | CDI System |
| Cooling system: | Air |
| Gearbox: | Automatic |
Transmission type,
final drive: | Shaft drive (cardan) |
| Clutch: | Dry, Automatic Centrifugal Clutch with variomatic drive |
| Driveline: | Variomatic |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Underbone |
| Front suspension: | Bottom link with spring-loaded hydraulic damper |
| Rear suspension: | Swing arm with spring loaded hydraulic damper |
| Front tyre dimensions: | 90/100-10 |
| Rear tyre dimensions: | 90/100-10 |
| Front brakes: | Expanding brake (drum brake) |
| Front brakes diameter: | 130 mm (5.1 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Rear brakes diameter: | 130 mm (5.1 inches) |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 104.0 kg (229.3 pounds) |
| Seat height: | 795 mm (31.3 inches) If adjustable, lowest setting. |
| Overall height: | 1,100 mm (43.3 inches) |
| Overall length: | 1,750 mm (68.9 inches) |
| Overall width: | 705 mm (27.8 inches) |
| Ground clearance: | 155 mm (6.1 inches) |
| Wheelbase: | 1,240 mm (48.8 inches) |
| Fuel capacity: | 5.30 litres (1.40 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Light: | 12V – 35W / 35W – Halogen bulb (Multi – reflector type) headlights |
| Electrical: | 12 V - 3 Ah , MF Battery battery. |
| Color options: | White, black, blue, red, green, silver |
| Comments: | Sold in India. Brand previously called Hero Honda. |
