12 Harley-Davidson XL883N Sportster Iron 883 specificationsHarley-Davidson XL883N Sportster Iron 883 2012

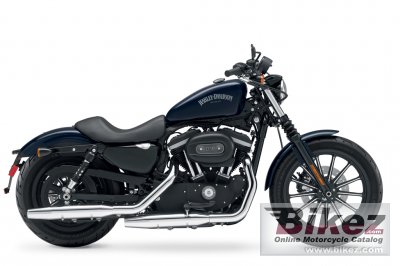

2012 Harley-Davidson XL883N Sportster Iron 883 photo
Picture credits - Harley-Davidson. Click to submit more pictures.
   Show big 2012 Harley-Davidson XL883N Sportster Iron 883 imageShow more 2012 Harley-Davidson XL883N Sportster Iron 883 images
2012 Harley-Davidson XL883N Sportster Iron 883

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Harley-Davidson's profilation of this bike
The Iron 883™ model is the anti-chrome motorcycle—decked in black from front to back with a defiant attitude that embraces the pure essence of riding

General information
Model:Harley-Davidson XL883N Sportster Iron 883
Year:2012
Category:Custom / cruiser
Rating:55.9 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 7999. Euro 8120. UK £ 6699. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:883.32 ccm (53.90 cubic inches)
Engine type:V2, four-stroke
Engine details:Air-cooled, Evolution®
Torque:74.58 Nm (7.6 kgf-m or 55.0 ft.lbs) @ 3500 RPM
Compression:8.9:1
Bore x stroke:76.2 x 96.8 mm (3.0 x 3.8 inches)
Fuel system:Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication system:Dry-sump
Cooling system:Air
Gearbox:5-speed
Transmission type,
final drive:
Belt
Clutch:Multi-plate with diaphragm spring in oil bath
Driveline:Chain primary drive, 57/34 ratio
Fuel consumption:4.61 litres/100 km (21.7 km/l or 51.02 mpg)
Greenhouse gases:107.0 CO2 g/km. (CO2 - Carbon dioxide emission)
Exhaust system:Chrome, staggered shorty exhaust with dual mufflers
Chassis, suspension, brakes and wheels
Frame type:Mild steel, tubular frame; circular sections; cast junctions
Rake (fork angle):30.5°
Trail:117 mm (4.6 inches)
Front suspension:39 mm
Front suspension travel:92 mm (3.6 inches)
Rear suspension:Mild steel, rectangular tube section, stamped junctions, MIG welded swing-arm. Coil-over; preload dual-adjustable shocks.
Rear suspension travel:54 mm (2.1 inches)
Front tyre dimensions:100/90-B19
Rear tyre dimensions:150/80-B16
Front brakes:Single disc. Dual-piston
Front brakes diameter:292 mm (11.5 inches)
Rear brakes:Single disc. Single-piston
Rear brakes diameter:260 mm (10.2 inches)
Wheels:Black, 13-Spoke Cast Aluminum
Physical measures and capacities
Dry weight:248.6 kg (548.0 pounds)
Weight incl. oil, gas, etc:256.3 kg (565.0 pounds)
Seat height:653 mm (25.7 inches) If adjustable, lowest setting.
Overall length:2,179 mm (85.8 inches)
Ground clearance:99 mm (3.9 inches)
Wheelbase:1,519 mm (59.8 inches)
Fuel capacity:12.49 litres (3.30 gallons)
Oil capacity:2.60 litres (0.17 quarts)
Other specifications
Starter:Electric
Instruments:Handlebar-mounted electronic speedometer with odometer, time-of-day clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights
Electrical:Sealed lead acid battery, maintenance-free, 12V, 12 amp/hour, 200 cca.
Seat:Classic solo seat
Factory warranty:24 months, unlimited mileage.
Color options:Big Blue Pearl, Ember Red Sunglo, Black Denim
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 12 Harley-Davidson XL883N Sportster Iron 883 discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Free motorcycle classifieds

Click here to sell a used 2012 Harley-Davidson XL883N Sportster Iron 883 or advertise any other MC for sale. You can list all available Harley-Davidson XL883N Sportster Iron 883 bikes and also sign up for e-mail notification when such motorcycles are advertised in the future. Ads with or without pictures are easy to create. Our classifieds are completely free with sections for every country in the world.

You can also check out our list of related motorbikes. Compare technical data. Look at photos. View your fellow riders' rating of the bike's reliability, design, engine performance, accident risk, repair cost, etc.


Rating sample for this Harley-Davidson bike
Engine performance for the 2012 Harley-Davidson XL883N Sportster Iron 883:


(67.0 out of 100)

Click here for complete rating. You can also compare bikes.
