| General information |
|---|

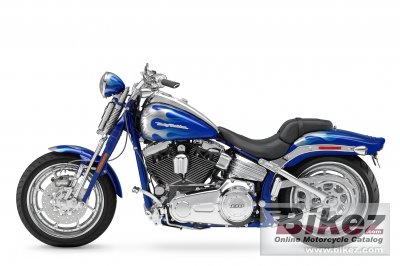

| Model: | Harley-Davidson FXSTSSE3 CVO Softail Springer |
| Year: | 2009 |
| Category: | Custom / cruiser |
| Rating: | 74.5 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 1800.00 ccm (109.84 cubic inches) |
| Engine type: | V2, four-stroke |
| Torque: | 135.00 Nm (13.8 kgf-m or 99.6 ft.lbs) @ 6500 RPM |
| Compression: | 9.2:1 |
| Bore x stroke: | 101.6 x 111.3 mm (4.0 x 4.4 inches) |
| Fuel system: | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Cooling system: | Air |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Belt |
| Clutch: | Hydraulically actuated, 9-plate, wet, with high-performance spring |
| Exhaust system: | Chrome, slash-down staggered exhaust with |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Mild steel, tubular frame; rectangular section backbone; |
| Rake (fork angle): | 32.0° |
| Trail: | 113 mm (4.4 inches) |
| Front suspension: | Leading-link fork |
| Front suspension travel: | 58 mm (2.3 inches) |
| Rear suspension: | Hidden, horizontal-mounted, coil-over |
| Rear suspension travel: | 82 mm (3.2 inches) |
| Front tyre dimensions: | 130/70-R18 |
| Rear tyre dimensions: | 240/55-R18 |
| Front brakes: | Double disc. 4-piston calipers |
| Front brakes diameter: | 292 mm (11.5 inches) |
| Rear brakes: | Single disc. 2-piston calipers |
| Rear brakes diameter: | 292 mm (11.5 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 329.0 kg (725.3 pounds) |
| Seat height: | 648 mm (25.5 inches) If adjustable, lowest setting. |
| Overall length: | 2,327 mm (91.6 inches) |
| Ground clearance: | 118 mm (4.6 inches) |
| Wheelbase: | 1,656 mm (65.2 inches) |
| Fuel capacity: | 18.90 litres (4.99 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Color options: | Black Diamond with Emerald Ice Flames, Candy Cobalt with Blue Steel Flames, Sunrise Yellow Pearl with Volcanic Fury Flames |
| Comments: | CVO is HD´s Custom Vehicle Operations. |
