05 Harley-Davidson FXDLI Dyna Glide Low Rider specificationsHarley-Davidson FXDLI Dyna Glide Low Rider 2005

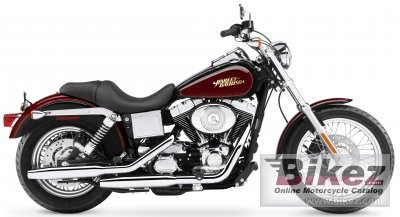

2005 Harley-Davidson FXDLI Dyna Glide Low Rider photo
Picture credits - Harley-Davidson. Click to submit more pictures.
   Show big 2005 Harley-Davidson FXDLI Dyna Glide Low Rider imageShow more 2005 Harley-Davidson FXDLI Dyna Glide Low Rider images
2005 Harley-Davidson FXDLI Dyna Glide Low Rider

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
1 review available
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Harley-Davidson's profilation of this bike
The Low Rider® model takes to the street as long, low and restless as ever. The profile is unmistakable, beginning up front with the raked-out fork, low-rise pullback handlebar and stretched tank. Downward and to the back, there are frame-mounted highway pegs, mid-mounted foot controls and a fat 150mm rear tire.

General information
Model:Harley-Davidson FXDLI Dyna Glide Low Rider
Year:2005
Category:Custom / cruiser
Rating:73.9 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:1449.00 ccm (88.42 cubic inches)
Engine type:V2, four-stroke
Torque:102.00 Nm (10.4 kgf-m or 75.2 ft.lbs) @ 3400 RPM
Compression:8.8:1
Bore x stroke:95.3 x 101.6 mm (3.8 x 4.0 inches)
Fuel system:Injection. Electronic Sequential Port Fuel Injection (ESPFI )
Fuel control:DOHC
Cooling system:Air
Gearbox:5-speed
Transmission type,
final drive:
Belt
Clutch:Multi-plate clutch with diaphragm spring in oil bath
Exhaust system:Staggered shorty duals
Chassis, suspension, brakes and wheels
Rake (fork angle):32.0°
Front tyre dimensions:100/90-19
Rear tyre dimensions:150/80-16
Front brakes:Double disc
Front brakes diameter:292 mm (11.5 inches)
Rear brakes:Single disc
Rear brakes diameter:292 mm (11.5 inches)
Physical measures and capacities
Dry weight:290.0 kg (639.3 pounds)
Seat height:640 mm (25.2 inches) If adjustable, lowest setting.
Overall length:2,340 mm (92.1 inches)
Ground clearance:117 mm (4.6 inches)
Wheelbase:1,625 mm (64.0 inches)
Fuel capacity:17.40 litres (4.60 gallons)
Other specifications
Color options:Vivid black, brilliant silver pearl, sierra red pearl, chopper blue pearl, lava red sunglo, glacier white pearl, rich sunglo blue, two-tone rich sunglo blue and chopper blue pearl, two-tone sierra red pearl and brilliant silver pearl, two-tone smokey gold
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 05 Harley-Davidson FXDLI Dyna Glide Low Rider discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Discussions for every bike

Bikez has discussion forums for every bike. View comments, questions and answers at the 2005 Harley-Davidson FXDLI Dyna Glide Low Rider discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review.

If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.


Rating sample for this Harley-Davidson bike
Reliability for the 2005 Harley-Davidson FXDLI Dyna Glide Low Rider:


(89.3 out of 100)

Click here for complete rating. You can also compare bikes.
