| General information |
|---|

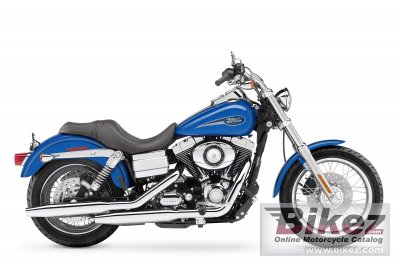

| Model: | Harley-Davidson FXDL Dyna Low Rider |
| Year: | 2007 |
| Category: | Custom / cruiser |
| Rating: | 73.1 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 1573.25 ccm (96.00 cubic inches) |
| Engine type: | V2 |
| Stroke: | 4 |
| Torque: | 124.75 Nm (12.7 kgf-m or 92.0 ft.lbs) @ 3000 RPM |
| Compression: | 9.2:1 |
| Bore x stroke: | 95.3 x 111.3 mm (3.8 x 4.4 inches) |
| Fuel system: | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Fuel control: | DOHC |
| Starter: | Electric |
| Cooling system: | Air |
| Gearbox: | 6-speed |
Transmission type
final drive: | Belt |
| Clutch: | Multi-plate with diaphragm spring in oil bath |
| Physical measures |
|---|
| Dry weight: | 290.8 kg (641.0 pounds) |
| Weight incl. oil, gas, etc: | 304.8 kg (672.0 pounds) |
| Seat height: | 681 mm (26.8 inches) If adjustable, lowest setting. |
| Overall length: | 2,365 mm (93.1 inches) |
| Ground clearance: | 142 mm (5.6 inches) |
| Wheelbase: | 1,641 mm (64.6 inches) |
| Chassis and dimensions |
|---|
| Rake (fork angle): | 29.0° |
| Front tyre dimensions: | 100/90-H19 |
| Rear tyre dimensions: | 160/70-B17 |
| Front brakes: | Single disc |
| Rear brakes: | Single disc |
| Exhaust system: | Chrome, staggered shorty duals |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 18.16 litres (4.80 gallons) |
| Fuel consumption pr. 10 km (6.2 miles): | 4.43 litres (1.17 gallons) |
| Color options: | Vivid black, black pearl, fire red pearl, deep cobalt pearl, Pacific blue pearl (new), pewter pearl (new), white gold pearl (new), two-tone suede blue pearl and vivid black (new), two-tone fire red pearl and black pearl (new), two-tone deep cobalt pearl |
