12 Harley-Davidson FLTRU Road Glide Ultra specificationsHarley-Davidson FLTRU Road Glide Ultra 2012

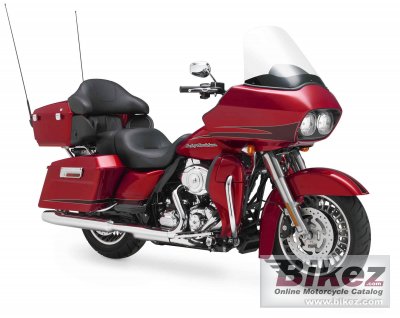

2012 Harley-Davidson FLTRU Road Glide Ultra photo
Picture credits - Harley-Davidson. Click to submit more pictures.
   Show big 2012 Harley-Davidson FLTRU Road Glide Ultra imageShow more 2012 Harley-Davidson FLTRU Road Glide Ultra images
2012 Harley-Davidson FLTRU Road Glide Ultra

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Harley-Davidson's profilation of this bike
If you crave long-haul agility on rides of all distances, you´re going to love this. We beefed things up by adding a big, mighty wheel with a low aspect ratio. That means the bike maintains its legendary tight turning radius, balanced feel and superior low-speed maneuverability.

General information
Model:Harley-Davidson FLTRU Road Glide Ultra
Year:2012
Category:Touring
Rating:79.5 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 22499. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:1687.97 ccm (103.00 cubic inches)
Engine type:V2, four-stroke
Engine details:Air-cooled Twin Cam 103™ with Integrated Oil-Cooler
Torque:135.60 Nm (13.8 kgf-m or 100.0 ft.lbs) @ 3250 RPM
Compression:9.6:1
Bore x stroke:98.4 x 111.3 mm (3.9 x 4.4 inches)
Valves per cylinder:2
Fuel system:Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication system:Pressurized, dry-sump with oil cooler
Cooling system:Air
Gearbox:6-speed
Transmission type,
final drive:
Belt
Clutch:Multi-plate with diaphragm spring in oil bath
Driveline:Primary drive chain, 34/46 ratio. Final Drive Belt, 32/68 ratio
Fuel consumption:5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Greenhouse gases:129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Exhaust system:Chrome, 2-1-2 dual exhaust with tapered mufflers
Chassis, suspension, brakes and wheels
Frame type:Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Rake (fork angle):26.0°
Trail:170 mm (6.7 inches)
Front suspension:41.3 mm telescopic, triple circuit damping
Front suspension travel:117 mm (4.6 inches)
Rear suspension:Air-adjustable shocks. Mild steel; two-piece drawn and welded section; forged junctions; MIG welded swingarm.
Rear suspension travel:76 mm (3.0 inches)
Front tyre dimensions:130/80-BW17
Rear tyre dimensions:180/65-BW16
Front brakes:Double disc. 4-piston calipers. ABS.
Front brakes diameter:300 mm (11.8 inches)
Rear brakes:Single disc. 4-piston caliper. ABS.
Rear brakes diameter:300 mm (11.8 inches)
Wheels:Black, 28-spoke Cast Aluminum
Physical measures and capacities
Dry weight:385.6 kg (850.0 pounds)
Weight incl. oil, gas, etc:402.8 kg (888.0 pounds)
Seat height:693 mm (27.3 inches) If adjustable, lowest setting.
Overall length:2,507 mm (98.7 inches)
Ground clearance:130 mm (5.1 inches)
Wheelbase:1,613 mm (63.5 inches)
Fuel capacity:22.71 litres (6.00 gallons)
Oil capacity:3.80 litres (0.25 quarts)
Other specifications
Starter:Electric
Instruments:Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light; cruise control indicator light; tachometer with fuel, voltage, oil pressure and ambient air temperature gauges
Electrical:Sealed, maintenance-free battery, 12V, 19-amp/hour, 270 cca
Seat:Passenger backrest with wrap-around armrests
Factory warranty:24 months, unlimited mileage.
Color options:Vivid Black, Big Blue Pearl, Ember Red Sunglo
Comments:Sidecar option. Windshield. Injection-molded GTX saddlebags; 2.26 cu. ft. volume.
