09 Harley-Davidson FLTR Road Glide specificationsHarley-Davidson FLTR Road Glide 2009

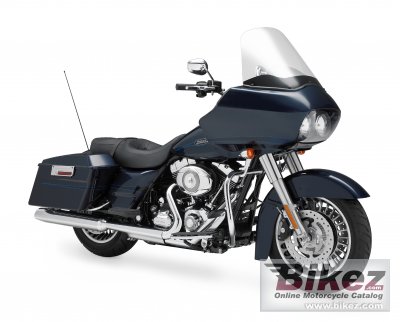

2009 Harley-Davidson FLTR Road Glide photo
Picture credits - Harley-Davidson. Click to submit more pictures.
   Show big 2009 Harley-Davidson FLTR Road Glide imageShow more 2009 Harley-Davidson FLTR Road Glide images
2009 Harley-Davidson FLTR Road Glide

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Harley-Davidson's profilation of this bike
Identified by its “shark nose” frame-mounted fairing, the Road Glide gobbles up the highway with rakish style. Hard-shell saddlebags, electronic cruise control, and the 40-watt Advanced Audio System by Harman/Kardon are standard equipment.

General information
Model:Harley-Davidson FLTR Road Glide
Year:2009
Category:Touring
Rating:71.5 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:1584.00 ccm (96.66 cubic inches)
Engine type:V2, four-stroke
Torque:125.00 Nm (12.7 kgf-m or 92.2 ft.lbs) @ 3500 RPM
Compression:9.2:1
Bore x stroke:95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system:Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Cooling system:Air
Gearbox:6-speed
Transmission type,
final drive:
Belt
Clutch:9-plate, wet
Fuel consumption:5.00 litres/100 km (20.0 km/l or 47.04 mpg)
Greenhouse gases:116.0 CO2 g/km. (CO2 - Carbon dioxide emission)
Exhaust system:2-1-2 exhaust system
Chassis, suspension, brakes and wheels
Frame type:New mild steel, single spar rigid backbone with
Rake (fork angle):26.0°
Trail:173 mm (6.8 inches)
Front suspension:41.3mm telescopic fork
Front suspension travel:117 mm (4.6 inches)
Rear suspension:Air-adjustable
Rear suspension travel:76 mm (3.0 inches)
Front tyre dimensions:130/80-B17
Rear tyre dimensions:180/65-B16
Front brakes:Double disc. Brembo triple-disc brake system
Front brakes diameter:300 mm (11.8 inches)
Rear brakes:Single disc
Rear brakes diameter:300 mm (11.8 inches)
Physical measures and capacities
Dry weight:355.0 kg (782.6 pounds)
Weight incl. oil, gas, etc:378.0 kg (833.3 pounds)
Seat height:683 mm (26.9 inches) If adjustable, lowest setting.
Overall height:1,397 mm (55.0 inches)
Overall length:2,390 mm (94.1 inches)
Overall width:909 mm (35.8 inches)
Ground clearance:129 mm (5.1 inches)
Wheelbase:1,613 mm (63.5 inches)
Fuel capacity:22.71 litres (6.00 gallons)
Other specifications
Starter:Electric
Comments:Optional ABS
