09 Harley-Davidson FLSTSB Softail Cross Bones specificationsHarley-Davidson FLSTSB Softail Cross Bones 2009

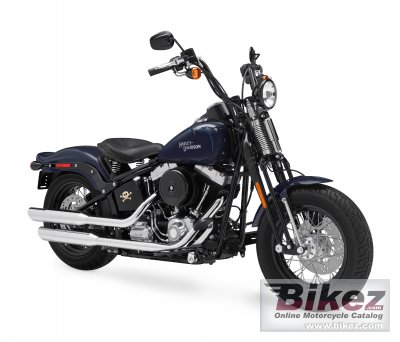

2009 Harley-Davidson FLSTSB Softail Cross Bones photo
Picture credits - Harley-Davidson. Click to submit more pictures.
   Show big 2009 Harley-Davidson FLSTSB Softail Cross Bones imageShow more 2009 Harley-Davidson FLSTSB Softail Cross Bones images
2009 Harley-Davidson FLSTSB Softail Cross Bones

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Harley-Davidson's profilation of this bike
If riding a Harley-Davidson motorcycle is a timeless experience, then the new FLSTSB Softail Cross Bones almost makes the clock stand still. The dark Cross Bones has the profile of an authentic custom bobber, a stripped-down-and-chopped custom with raw finishes and loads of attitude.

General information
Model:Harley-Davidson FLSTSB Softail Cross Bones
Year:2009
Category:Custom / cruiser
Rating:68.3 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:1584.00 ccm (96.66 cubic inches)
Engine type:V2, four-stroke
Torque:120.00 Nm (12.2 kgf-m or 88.5 ft.lbs) @ 3300 RPM
Bore x stroke:95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system:Injection. Electronic Sequential Port Fuel Injection
Cooling system:Air
Gearbox:6-speed
Transmission type,
final drive:
Belt
Clutch:9-plate, wet
Exhaust system:Chrome, straight over/under shotgun exhaust with dual mufflers
Chassis, suspension, brakes and wheels
Frame type:Mild steel tubular frame; rectangular section backbone; stamped,
Rake (fork angle):32.0°
Trail:160 mm (6.3 inches)
Front suspension:Black leading link
Front suspension travel:130 mm (5.1 inches)
Rear suspension:Hidden, horizontal-mounted, coil-over
Rear suspension travel:109 mm (4.3 inches)
Front tyre dimensions:MT90-B16
Rear tyre dimensions:200/55-R17
Front brakes:Single disc
Front brakes diameter:292 mm (11.5 inches)
Rear brakes:Single disc
Rear brakes diameter:292 mm (11.5 inches)
Physical measures and capacities
Dry weight:318.0 kg (701.1 pounds)
Seat height:676 mm (26.6 inches) If adjustable, lowest setting.
Overall length:2,330 mm (91.7 inches)
Ground clearance:125 mm (4.9 inches)
Wheelbase:1,630 mm (64.2 inches)
Fuel capacity:18.90 litres (4.99 gallons)
Other specifications
Starter:Electric
Color options:Vivid Black, Dark Blue Pearl, Black Denim, Pewter Denim
Comments:Gloss black Springer® front end with chopped front fender; Gloss black mini “ape-hanger” handlebar; Gloss black console with cat-eye indicators; Rider adjusted, two-position, sprung solo seat; Tribal pinstripe graphics on fuel tank and fenders; Nostalgic patent badge on oil tank; Gloss black, oval air cleaner cover; Half moon floorboards with heel/toe shifter; New Willie G. signed skull graphics on the oil tankoil tank with chrome external oil lines; Chrome, bullet headlamp; Standard passenger footpegs; Chrome auxiliary lamps; New quick detachable king-size Lexan windshield; New 1940’s-style leather saddlebags with quick opening buckles; New passenger seat; New passenger backrest; New Touring handlebars with new top clamp and risers; Full FL front fender with new chrome accents; New two-tone leather tank panel; New Hydra Glide style, chrome nacelle with horizontal “knuckles”; New “old-school” shaped, stainless steel rider footboards and brake paddle
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 09 Harley-Davidson FLSTSB Softail Cross Bones discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Sell or buy used bikes?

Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2009 Harley-Davidson FLSTSB Softail Cross Bones or advertise any other MC for sale. You can list all 2009 Harley-Davidson FLSTSB Softail Cross Bones available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes.

Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc.


Rating sample for this Harley-Davidson bike
Value for money for the 2009 Harley-Davidson FLSTSB Softail Cross Bones:


(71.3 out of 100)

Click here for complete rating. You can also compare bikes.
