| Harley-Davidson's profilation of this bike |
| Building on the Fat Boy® legacy, the Fat Boy® Lo brought a darker, slammed appearance to the world of boulevard cruisers. From front to back, this custom cruiser shows attitude, with custom, black bullet hole wheels, a denim black frame, blacked-out covers and header shields, and satin chrome in all the places mirror chrome would normally reside. |
| General information |
|---|

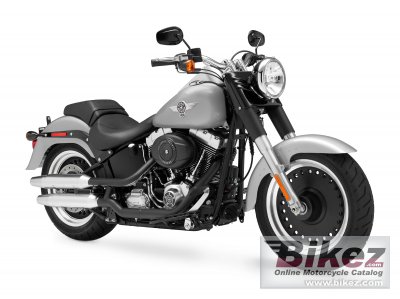

| Model: | Harley-Davidson FLSTFB Fat Boy Special | | Year: | 2011 | | Category: | Custom / cruiser | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 1584.00 ccm (96.66 cubic inches) | | Engine type: | V2, four-stroke | | Engine details: | Twin Cam 96B | | Torque: | 126.00 Nm (12.8 kgf-m or 92.9 ft.lbs) @ 3500 RPM | | Compression: | 9.2:1 | | Bore x stroke: | 95.3 x 111.1 mm (3.8 x 4.4 inches) | | Valves per cylinder: | 2 | | Fuel system: | Injection. Electronic Sequential Port Fuel Injection (ESPFI) | | Fuel control: | OHV | | Lubrication system: | Pressurized, dry-sump | | Cooling system: | Air | | Gearbox: | 6-speed | Transmission type,
final drive: | Belt | | Clutch: | Multi-plate, wet | | Driveline: | • HDI, BRZ | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Mild steel tubular frame; rectangular section backbone; stamped, cast, | | Rake (fork angle): | 31.6° | | Trail: | 147 mm (5.8 inches) | | Front suspension: | 41.3 mm telescopic, “beer can” covers | | Front suspension travel: | 130 mm (5.1 inches) | | Rear suspension: | Hidden, horizontal-mounted, coil-over | | Rear suspension travel: | 91 mm (3.6 inches) | | Front tyre dimensions: | 140/75-R17 | | Rear tyre dimensions: | 200/55-R17 | | Front brakes: | Single disc. 4-piston | | Rear brakes: | Single disc | | Wheels: | Black, Bullet Hole Disc Cast Aluminum (HDI, BRZ) | | Physical measures and capacities |
|---|
| Dry weight: | 318.0 kg (701.1 pounds) | | Seat height: | 680 mm (26.8 inches) If adjustable, lowest setting. | | Overall height: | 1,085 mm (42.7 inches) | | Overall length: | 2,385 mm (93.9 inches) | | Ground clearance: | 125 mm (4.9 inches) | | Wheelbase: | 1,630 mm (64.2 inches) | | Fuel capacity: | 18.90 litres (4.99 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Instruments: | Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed ind | | Electrical: | Sealed, maintenance-free, 12V battery. | | Further information |
|---|
