11 Harley-Davidson FLSTFB Fat Boy Lo specificationsHarley-Davidson FLSTFB Fat Boy Lo 2011

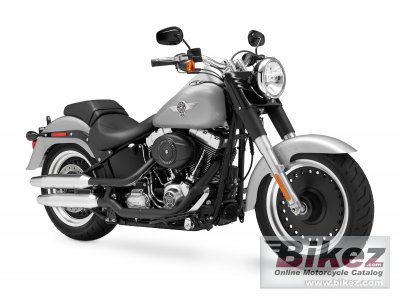

2011 Harley-Davidson FLSTFB Fat Boy Lo photo
Picture credits - Harley-Davidson. Click to submit more pictures.
   Show big 2011 Harley-Davidson FLSTFB Fat Boy Lo imageShow more 2011 Harley-Davidson FLSTFB Fat Boy Lo images
2011 Harley-Davidson FLSTFB Fat Boy Lo

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Harley-Davidson's profilation of this bike
Building on the Fat Boy® legacy, the Fat Boy® Lo brought a darker, slammed appearance to the world of boulevard cruisers. From front to back, this custom cruiser shows attitude, with custom, black bullet hole wheels, a denim black frame, blacked-out covers and header shields, and satin chrome in all the places mirror chrome would normally reside.

General information
Model:Harley-Davidson FLSTFB Fat Boy Lo
Year:2011
Category:Custom / cruiser
Rating:76.4 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 16299. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:1584.00 ccm (96.66 cubic inches)
Engine type:V2, four-stroke
Engine details:Twin Cam 96B
Torque:127.00 Nm (12.9 kgf-m or 93.7 ft.lbs) @ 3000 RPM
Compression:9.2:1
Bore x stroke:95.3 x 111.1 mm (3.8 x 4.4 inches)
Valves per cylinder:2
Fuel system:Injection. Electronic Sequential Port Fuel Injection
Fuel control:DOHC
Lubrication system:Pressurized, dry-sump
Cooling system:Air
Gearbox:6-speed
Clutch:9-plate, wet
Driveline:Primary Drive: Chain, 34/46 ratio. Final Drive: Belt, 32/66 ratio
Exhaust system:Over/under shotgun exhaust with dual mufflers and
Chassis, suspension, brakes and wheels
Frame type:Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded.
Rake (fork angle):32.0°
Trail:147 mm (5.8 inches)
Front suspension:41.3mm telescopic, “beer can” covers
Front suspension travel:130 mm (5.1 inches)
Rear suspension:Hidden, horizontal-mounted, coil-over
Rear suspension travel:91 mm (3.6 inches)
Front tyre dimensions:140/75-R17
Rear tyre dimensions:200/55-R17
Front brakes:Single disc. 4-piston
Front brakes diameter:292 mm (11.5 inches)
Rear brakes:Single disc. 2-piston
Rear brakes diameter:292 mm (11.5 inches)
Wheels:Black, Bullet Hole Disc Cast Aluminum
Physical measures and capacities
Dry weight:317.5 kg (700.0 pounds)
Seat height:669 mm (26.3 inches) If adjustable, lowest setting.
Overall length:2,395 mm (94.3 inches)
Ground clearance:122 mm (4.8 inches)
Wheelbase:1,638 mm (64.5 inches)
Fuel capacity:19.70 litres (5.20 gallons)
Oil capacity:3.10 litres (0.20 quarts)
Other specifications
Starter:Electric
Instruments:Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed ind
Electrical:Sealed, maintenance-free, 12V battery.
Color options:Vivid Black, Brilliant Silver Pearl, Black Denim, White Hot Denim
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 11 Harley-Davidson FLSTFB Fat Boy Lo discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Discussions for every bike

Bikez has discussion forums for every bike. View comments, questions and answers at the 2011 Harley-Davidson FLSTFB Fat Boy Lo discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review.

If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.


Rating sample for this Harley-Davidson bike
Reliability for the 2011 Harley-Davidson FLSTFB Fat Boy Lo:


(83.0 out of 100)

Click here for complete rating. You can also compare bikes.
