12 Harley-Davidson FLSTF Softail Fat Boy specificationsHarley-Davidson FLSTF Softail Fat Boy 2012

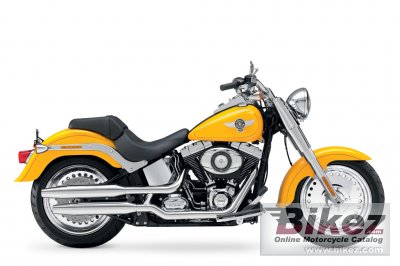

2012 Harley-Davidson FLSTF Softail Fat Boy photo
Picture credits - Harley-Davidson. Click to submit more pictures.
   Show big 2012 Harley-Davidson FLSTF Softail Fat Boy imageShow more 2012 Harley-Davidson FLSTF Softail Fat Boy images
2012 Harley-Davidson FLSTF Softail Fat Boy

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Harley-Davidson's profilation of this bike
Hearkening to the ´hardtail´ choppers of the ´60s and ´70s, the Fat Boy® motorcycle keeps that heritage alive more than forty years later. This is the original ´fat custom´ bike—laid-back and luxurious with an unmistakable profile on the road.

General information
Model:Harley-Davidson FLSTF Softail Fat Boy
Year:2012
Category:Custom / cruiser
Rating:72.7 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 16349. Euro 20445. UK £ 15899. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:1687.97 ccm (103.00 cubic inches)
Engine type:V2, four-stroke
Engine details:Air-cooled, Twin Cam 103B™
Torque:133.84 Nm (13.6 kgf-m or 98.7 ft.lbs) @ 3000 RPM
Compression:9.6:1
Bore x stroke:98.4 x 111.3 mm (3.9 x 4.4 inches)
Valves per cylinder:2
Fuel system:Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication system:Pressurized, dry-sump
Cooling system:Air
Gearbox:6-speed
Transmission type,
final drive:
Belt
Clutch:Multi-plate with diaphragm spring in oil bath
Driveline:Primary Drive Chain, 34/46 ratio. Final Drive Belt, 32/66 ratio.
Fuel consumption:5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Greenhouse gases:129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Exhaust system:Chrome, over/under shotgun exhaust with dual mufflers
Chassis, suspension, brakes and wheels
Frame type:Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Rake (fork angle):31.0°
Trail:147 mm (5.8 inches)
Front suspension:41.3 mm telescopic, “beer can” covers
Front suspension travel:130 mm (5.1 inches)
Rear suspension:Hidden, horizontal-mounted, coil-over
Rear suspension travel:109 mm (4.3 inches)
Front tyre dimensions:140/75-R17
Rear tyre dimensions:200/55-R17
Front brakes:Single disc. 4-piston caliper. Optional ABS.
Front brakes diameter:292 mm (11.5 inches)
Rear brakes:Single disc. 2-piston caliper. Optional ABS.
Rear brakes diameter:292 mm (11.5 inches)
Wheels:Silver, Bullet Hole Disc Cast Aluminum
Physical measures and capacities
Dry weight:314.8 kg (694.0 pounds)
Weight incl. oil, gas, etc:328.9 kg (725.0 pounds)
Seat height:635 mm (25.0 inches) If adjustable, lowest setting.
Overall length:2,395 mm (94.3 inches)
Ground clearance:130 mm (5.1 inches)
Wheelbase:1,638 mm (64.5 inches)
Fuel capacity:18.93 litres (5.00 gallons)
Oil capacity:3.30 litres (0.22 quarts)
Other specifications
Starter:Electric
Instruments:Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light
Electrical:Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca
Seat:Two-piece, two-up Softail® seat with removable pillion
Factory warranty:2 years, unlimited mileage.
Color options:Vivid Black, Chrome Yellow, Midnight Pearl/Brilliant Silver Pearl, Tequila Sunrise/H-D Orange
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 12 Harley-Davidson FLSTF Softail Fat Boy discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Free motorcycle classifieds

Click here to sell a used 2012 Harley-Davidson FLSTF Softail Fat Boy or advertise any other MC for sale. You can list all available Harley-Davidson FLSTF Softail Fat Boy bikes and also sign up for e-mail notification when such motorcycles are advertised in the future. Ads with or without pictures are easy to create. Our classifieds are completely free with sections for every country in the world.

You can also check out our list of related motorbikes. Compare technical data. Look at photos. View your fellow riders' rating of the bike's reliability, design, engine performance, accident risk, repair cost, etc.


Rating sample for this Harley-Davidson bike
Engine performance for the 2012 Harley-Davidson FLSTF Softail Fat Boy:


(83.0 out of 100)

Click here for complete rating. You can also compare bikes.
