12 Harley-Davidson FLHTCUTG Tri Glide Ultra Classic specificationsHarley-Davidson FLHTCUTG Tri Glide Ultra Classic 2012

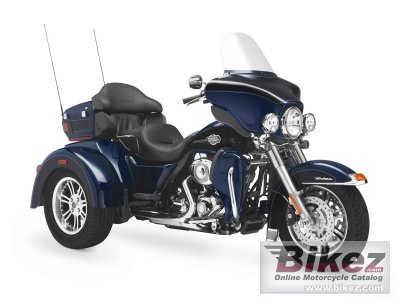

2012 Harley-Davidson FLHTCUTG Tri Glide Ultra Classic photo
Picture credits - Harley-Davidson. Click to submit more pictures.
   Show big 2012 Harley-Davidson FLHTCUTG Tri Glide Ultra Classic imageShow more 2012 Harley-Davidson FLHTCUTG Tri Glide Ultra Classic images
2012 Harley-Davidson FLHTCUTG Tri Glide Ultra Classic

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Harley-Davidson's profilation of this bike
The Tri Glide™ Ultra Classic® is a full-feature, factory motorcycle built to confidently chase the horizon with long-haul comfort and freedom on three wheels. The Harley-Davidson® Trike platform brings original-equipment design, quality and service to the three-wheel motorcycle segment.

General information
Model:Harley-Davidson FLHTCUTG Tri Glide Ultra Classic
Year:2012
Category:Custom / cruiser
Rating:69.4 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 30499. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:1687.97 ccm (103.00 cubic inches)
Engine type:V2, four-stroke
Engine details:Air-cooled, Twin Cam 103™. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters.
Torque:135.60 Nm (13.8 kgf-m or 100.0 ft.lbs) @ 3250 RPM
Compression:9.6:1
Bore x stroke:98.4 x 111.3 mm (3.9 x 4.4 inches)
Valves per cylinder:2
Fuel system:Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication system:Pressurized, dry-sump with oil cooler
Cooling system:Air
Gearbox:6-speed
Transmission type,
final drive:
Belt
Clutch:Multi-plate with diaphragm spring in oil bath
Driveline:Primary drive chain, 34/46 ratio. Final Drive Belt, 32/68 ratio
Fuel consumption:6.19 litres/100 km (16.2 km/l or 38.00 mpg)
Greenhouse gases:143.6 CO2 g/km. (CO2 - Carbon dioxide emission)
Exhaust system:Chrome, 2-1-2 dual exhaust with tapered mufflers
Chassis, suspension, brakes and wheels
Frame type:Mild steel, square-section backbone with twin downtubes
Rake (fork angle):26.0°
Trail:170 mm (6.7 inches)
Front suspension:41.3 mm telescopic, triple circuit damping
Front suspension travel:117 mm (4.6 inches)
Rear suspension:Air-adjustable shocks.
Rear suspension travel:76 mm (3.0 inches)
Front tyre dimensions:130/80-NW17
Rear tyre dimensions:205/65-P15
Front brakes:Double disc. 4-piston calipers
Front brakes diameter:300 mm (11.8 inches)
Rear brakes:Single disc. 4-piston caliper.
Rear brakes diameter:228 mm (9.0 inches)
Wheels:Black, 7-spoke Cast Aluminum
Physical measures and capacities
Dry weight:386.5 kg (852.0 pounds)
Weight incl. oil, gas, etc:403.2 kg (889.0 pounds)
Seat height:693 mm (27.3 inches) If adjustable, lowest setting.
Overall length:2,504 mm (98.6 inches)
Ground clearance:130 mm (5.1 inches)
Wheelbase:1,613 mm (63.5 inches)
Fuel capacity:22.71 litres (6.00 gallons)
Oil capacity:3.80 litres (0.25 quarts)
Other specifications
Starter:Electric
Instruments:Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light; cruise control indicator light; tachometer with fuel, voltage, oil pressure and ambient air temperature gauges
Electrical:Sealed, maintenance-free battery, 12V, 28-amp/hour, 370 cca
Seat:One-piece, two-up Ultra Classic® Electra Glide® comfort stitch seat
Factory warranty:2 years, unlimited mileage.
Color options:Vivid Black, Ember Red Sunglo/Merlot Sunglo, Big Blue Pearl/Vivid Black
Comments:3 wheels. Lever actuated dual parking brake. Electric reverse actuated by handlebar mounted hand controls.
