11 Harley-Davidson 883 Roadster specificationsHarley-Davidson 883 Roadster 2011

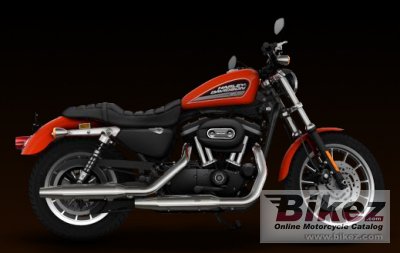

2011 Harley-Davidson 883 Roadster photo
Picture credits - Harley-Davidson. Click to submit more pictures.
2011 Harley-Davidson 883 Roadster

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



General information
Model:Harley-Davidson 883 Roadster
Year:2011
Category:Custom / cruiser
Rating:44.5 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:883.32 ccm (53.90 cubic inches)
Engine type:V2, four-stroke
Engine details:Air-cooled Evolution engine. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters.
Torque:70.00 Nm (7.1 kgf-m or 51.6 ft.lbs) @ 3750 RPM
Compression:8.9:1
Bore x stroke:76.2 x 96.8 mm (3.0 x 3.8 inches)
Fuel system:Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Fuel control:OHV
Lubrication system:Dry-sump
Cooling system:Air
Gearbox:6-speed
Transmission type,
final drive:
Belt
Clutch:Multi-plate with diaphragm spring in oil bath
Driveline:Primary Drive Chain, 57/34 ratio. Final Drive Belt, 68/29 ratio
Exhaust system:Chrome, staggered shorty exhaust with dual mufflers
Chassis, suspension, brakes and wheels
Frame type:Mild steel, tubular frame; circular sections; cast junctions
Rake (fork angle):31.0
Trail:145 mm (5.7 inches)
Front suspension:39 mm fork
Front suspension travel:92 mm (3.6 inches)
Rear suspension:Coil-over, preload dual-adjustable
Rear suspension travel:41 mm (1.6 inches)
Front tyre dimensions:100/90-19
Rear tyre dimensions:150/80-B16
Front brakes:Single disc. Dual-piston.
Front brakes diameter:292 mm (11.5 inches)
Rear brakes:Single disc
Rear brakes diameter:260 mm (10.2 inches)
Wheels:Black, 13-Spoke Cast Aluminum
Physical measures and capacities
Dry weight:248.6 kg (548.0 pounds)
Weight incl. oil, gas, etc:256.3 kg (565.0 pounds)
Seat height:653 mm (25.7 inches) If adjustable, lowest setting.
Overall height:1,107 mm (43.6 inches)
Overall length:2,179 mm (85.8 inches)
Overall width:820 mm (32.3 inches)
Ground clearance:99 mm (3.9 inches)
Wheelbase:1,519 mm (59.8 inches)
Fuel capacity:12.49 litres (3.30 gallons)
Oil capacity:2.80 litres (0.18 quarts)
Other specifications
Starter:Electric
Instruments:Handlebar-mounted electronic speedometer with odometer, time-of-day clock odometer, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lightsHandlebar-mounted electronic speedometer with odometer, tim
Light:55-watt low beam, 60-watt high beam
Electrical:Sealed lead acid, maintenance-free batery, 12V, 12 amp/hour, 200 cca. 30-amp, permanent magnet, single-phase alternator with solid-state regulator.
Color options:Vivid Black, Sedona Orange
