| General information |
|---|

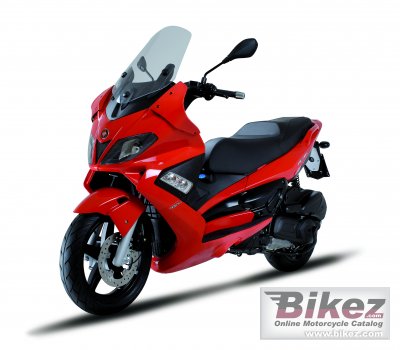

| Model: | Gilera Nexus 125 |
| Year: | 2009 |
| Category: | Scooter |
| Rating: | 57 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 124.00 ccm (7.57 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 4 |
| Power: | 14.50 HP (10.6 kW)) @ 9750 RPM |
| Torque: | 11.70 Nm (1.2 kgf-m or 8.6 ft.lbs) @ 8000 RPM |
| Compression: | 12.0:1 |
| Bore x stroke: | 57.0 x 46.0 mm (2.2 x 1.8 inches) |
| Fuel system: | Injection |
| Valves per cylinder: | 4 |
| Fuel control: | SOHC |
| Ignition: | Electronic inductive discharge |
| Starter: | Electric |
| Cooling system: | Liquid |
| Gearbox: | Automatic |
| Clutch: | Dry centrifugal type with damping plugs |
| Physical measures |
|---|
| Weight incl. oil, gas, etc: | 186.0 kg (410.1 pounds) |
| Seat height: | 810 mm (31.9 inches) If adjustable, lowest setting. |
| Overall length: | 2,100 mm (82.7 inches) |
| Overall width: | 780 mm (30.7 inches) |
| Wheelbase: | 1,530 mm (60.2 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Double cradle trellis made of high-strength steel tubes |
| Front suspension: | elescopic hydraulic fork with ö 35 mm shafts; |
| Front suspension travel: | 94 mm (3.7 inches) |
| Rear suspension: | Double hydraulic shock absorber with four-position spring preload |
| Rear suspension travel: | 76 mm (3.0 inches) |
| Front tyre dimensions: | 120/70-14 |
| Rear tyre dimensions: | 140/60-14 |
| Front brakes: | Single disc. Stainless steel disk, two-piston floating caliper |
| Front brakes diameter: | 260 mm (10.2 inches) |
| Rear brakes: | Single disc. Stainless steel disk, caliper with two opposite pistons |
| Rear brakes diameter: | 240 mm (9.4 inches) |
| Exhaust system: | Euro III |
| Speed and acceleration |
|---|
| Top speed: | 103.0 km/h (64.0 mph) |
| Other specifications |
|---|
| Fuel capacity: | 15.00 litres (3.96 gallons) |
| Reserve fuel capacity: | 2.80 litres (0.74 gallons) |
| Color options: | Rosso |
