| General information |
|---|

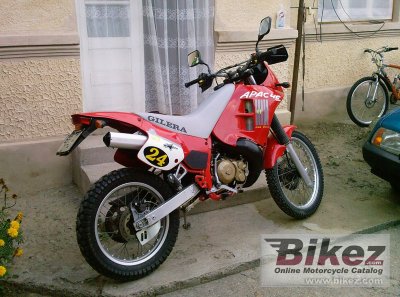

| Model: | Gilera Apache 125 |
| Year: | 1991 |
| Category: | Enduro / offroad |
| Rating: | 61.7 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 124.00 ccm (7.57 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 2 |
| Power: | 29.30 HP (21.4 kW)) @ 9900 RPM |
| Torque: | 18.50 Nm (1.9 kgf-m or 13.6 ft.lbs) @ 8250 RPM |
| Max RPM: | 12000 |
| Compression: | 12.5:1 |
| Bore x stroke: | 56.0 x 50.5 mm (2.2 x 2.0 inches) |
| Fuel system: | Carburettor. 32mm Dell´Orto VHSA32ES |
| Valves per cylinder: | 4 |
| Fuel control: | SOHC |
| Ignition: | CDI / electric and kick |
| Starter: | Electric & kick |
| Lubrication system: | separate oil mixing system |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type
final drive: | Chain |
| Clutch: | wet multi plate |
| Physical measures |
|---|
| Dry weight: | 132.0 kg (291.0 pounds) |
| Weight incl. oil, gas, etc: | 135.0 kg (297.6 pounds) |
| Seat height: | 870 mm (34.3 inches) If adjustable, lowest setting. |
| Overall height: | 1,220 mm (48.0 inches) |
| Overall length: | 2,130 mm (83.9 inches) |
| Overall width: | 830 mm (32.7 inches) |
| Ground clearance: | 395 mm (15.6 inches) |
| Wheelbase: | 1,450 mm (57.1 inches) |
| Chassis and dimensions |
|---|
| Frame type: | dual beam rectangular tube |
| Front suspension: | 43mm Kayaba |
| Front suspension travel: | 240 mm (9.4 inches) |
| Rear suspension: | Swinging arm centrel damper |
| Rear suspension travel: | 260 mm (10.2 inches) |
| Front tyre dimensions: | 90/90-21 |
| Rear tyre dimensions: | 120/80-18 |
| Front brakes: | Single disc |
| Front brakes diameter: | 260 mm (10.2 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Exhaust system: | single aluminium pipe |
| Speed and acceleration |
|---|
| Top speed: | 143.0 km/h (88.9 mph) |
| 1/4 mile (0.4 km): | 15.300 seconds |
| Power/weight ratio: | 0.2220 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 5.00 litres (1.32 gallons) |
| Reserve fuel capacity: | 1.00 litres (0.26 gallons) |
| Fuel consumption pr. 10 km (6.2 miles): | 6.00 litres (1.59 gallons) |
| Color options: | red,grey |
