| General information |
|---|

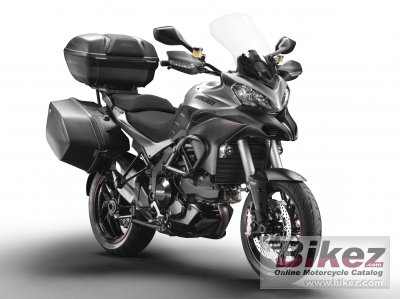

| Model: | Ducati Multistrada 1200 S Granturismo |
| Year: | 2013 |
| Category: | Touring |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 1198.40 ccm (73.13 cubic inches) |
| Engine type: | V2, four-stroke |
| Engine details: | L-Twin cylinder |
| Power: | 147.91 HP (108.0 kW)) @ 9250 RPM |
| Torque: | 124.50 Nm (12.7 kgf-m or 91.8 ft.lbs) @ 7500 RPM |
| Compression: | 11.5:1 |
| Bore x stroke: | 106.0 x 67.9 mm (4.2 x 2.7 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies |
| Fuel control: | Desmodromic valve control |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run |
| Driveline: | Chain 5.30 |
| Exhaust system: | Stainless steel muffler with catalytic converter and 2 lambda probes, alluminium tail pipes |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tubular steel Trellis frame |
| Rake (fork angle): | 25.0° |
| Trail: | 110 mm (4.3 inches) |
| Front suspension: | Sachs 48mm fully adjustable usd forks. Electronic compression and rebound damping adjustment with Ducati Skyhook Suspension |
| Rear suspension: | Electronic compression and rebound damping adjustment. Electronic spring pre-load adjustment with DSS Aluminium single-sided swingarm. |
| Front tyre dimensions: | 120/70-17 |
| Rear tyre dimensions: | 190/55-17 |
| Front brakes: | Double disc. ABS. Floating discs. Four-piston calipers. Radially mounted. |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. Two-piston calipers. |
| Rear brakes diameter: | 245 mm (9.6 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 217.0 kg (478.4 pounds) |
| Weight incl. oil, gas, etc: | 234.0 kg (515.9 pounds) |
| Power/weight ratio: | 0.6816 HP/kg |
| Seat height: | 850 mm (33.5 inches) If adjustable, lowest setting. |
| Wheelbase: | 1,530 mm (60.2 inches) |
| Fuel capacity: | 20.00 litres (5.28 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Instruments: | Multifunction digital dashboard. |
| Carrying capacity: | Top box, saddle bags |
| Factory warranty: | 2 years unlimited mileage |
| Color options: | Grey |
| Comments: | Windscreen |
