| General information |
|---|

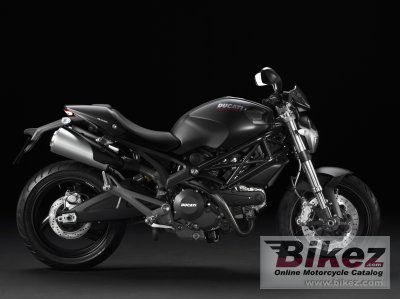

| Model: | Ducati Monster 696 |
| Year: | 2013 |
| Category: | Naked bike |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 696.00 ccm (42.47 cubic inches) |
| Engine type: | V2, four-stroke |
| Power: | 78.85 HP (57.6 kW)) @ 9000 RPM |
| Torque: | 69.00 Nm (7.0 kgf-m or 50.9 ft.lbs) @ 7750 RPM |
| Compression: | 10.7:1 |
| Bore x stroke: | 88.0 x 57.2 mm (3.5 x 2.3 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. Siemens electronic fuel injection, 45mm throttle body |
| Fuel control: | Desmodromic valve control |
| Cooling system: | Air |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | APTC wet multiplate with hydraulic control |
| Driveline: | Chain; Front sprocket 15; Rear sprocket 45. Primary drive: Straight cut gears; Ratio 1.85. |
| Emission details: | Euro 3 |
| Exhaust system: | 2 aluminum mufflers |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tubular steel Trellis frame |
| Rake (fork angle): | 24.0° |
| Trail: | 87 mm (3.4 inches) |
| Front suspension: | 43mm upside-down forks |
| Rear suspension: | Progressive linkage with preload and rebound Sachs adjustable monoshock |
| Front tyre: | 120/60-17 |
| Rear tyre: | 160/60-17 |
| Front brakes: | Double disc. Four-piston calipers. |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. Two-piston calipers. |
| Rear brakes diameter: | 245 mm (9.6 inches) |
| Wheels: | 3-spoke light alloy |
| Physical measures and capacities |
|---|
| Dry weight: | 161.0 kg (354.9 pounds) |
| Weight incl. oil, gas, etc: | 185.0 kg (407.9 pounds) |
| Power/weight ratio: | 0.4898 HP/kg |
| Seat height: | 770 mm (30.3 inches) If adjustable, lowest setting. |
| Wheelbase: | 1,450 mm (57.1 inches) |
| Fuel capacity: | 15.00 litres (3.96 gallons) |
| Other specifications |
|---|
| Color options: | Black, red, white |
| Instruments: | Digital unit displaying Speedometer, rev counter, clock, scheduled maintenance warning, oil temperature, trip fuel, air temperature, lap time, warning light for low oil pressure, fuel level, fuel reserve, neutral, turn signals, overrev, immobilizer. Ready for DDA system. |
| Factory warranty: | 2 years unlimited mileage |
