| Ducati's profilation of this bike |
| The Monster 1100EVO perfectly mixes high engine power, a Ducati Safety Pack (ABS + DTC) contained of advanced electronics, a new sports concept and superior riding pleasure to refine the original Monster formula, which makes it an icon of the naked segment. |
| General information |
|---|

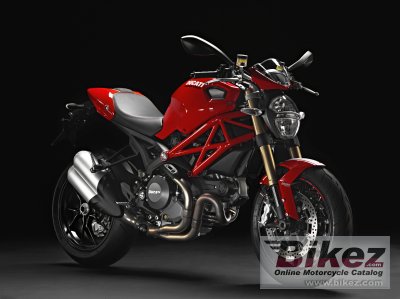

| Model: | Ducati Monster 1100 EVO | | Year: | 2013 | | Category: | Naked bike | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 1078.00 ccm (65.78 cubic inches) | | Engine type: | V2, four-stroke | | Power: | 98.57 HP (71.9 kW)) @ 7500 RPM | | Torque: | 103.00 Nm (10.5 kgf-m or 76.0 ft.lbs) @ 6000 RPM | | Compression: | 11.3:1 | | Bore x stroke: | 98.0 x 71.5 mm (3.9 x 2.8 inches) | | Valves per cylinder: | 2 | | Fuel system: | Injection. Siemens electronic fuel injection, 45mm throttle body | | Fuel control: | Desmodromic valve control | | Cooling system: | Air | | Gearbox: | 6-speed | Transmission type,
final drive: | Chain | | Clutch: | Wet multiplate with hydraulic control | | Driveline: | Chain; Front sprocket 15; Rear sprocket 39. Primary drive: Straight cut gears; Ratio 1.84. | | Emission details: | Euro 3 | | Exhaust system: | Lightweight 2-1-2 system with catalytic converter and two lambda probes. Twin aluminium mufflers | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tubular steel Trellis frame | | Rake (fork angle): | 24.0° | | Trail: | 87 mm (3.4 inches) | | Front suspension: | Marzocchi 43mm fully adjustable usd forks | | Rear suspension: | Progressive with preload and rebound Sachs adjustable monoshock | | Front tyre dimensions: | 120/70-ZR17 | | Rear tyre dimensions: | 180/55-ZR17 | | Front brakes: | Double disc. ABS. Four-piston calipers. | | Front brakes diameter: | 320 mm (12.6 inches) | | Rear brakes: | Single disc. ABS. Two-piston calipers. | | Rear brakes diameter: | 245 mm (9.6 inches) | | Physical measures and capacities |
|---|
| Dry weight: | 169.0 kg (372.6 pounds) | | Power/weight ratio: | 0.5833 HP/kg | | Seat height: | 810 mm (31.9 inches) If adjustable, lowest setting. | | Wheelbase: | 1,450 mm (57.1 inches) | | Fuel capacity: | 13.50 litres (3.57 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Instruments: | Digital unit displaying Speedometer, rev counter, time, scheduled maintenance warning, oil temperature, trip fuel, lap time, warning light for low oil pressure, fuel level, fuel reserve, neutral, turn signals, warning ABS, overrev, DTC, immobilizer. Ready for DDA system. | | Factory warranty: | 2 years unlimited mileage | | Color options: | Red, black, red/black/gold | | Further information |
|---|
| Parts and accessories | Check out parts and accessories from our other partners. |
| Ask questions | Join the 13 Ducati Monster 1100 EVO discussion group. |
| Insurance, loans, tests
| Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs |
