| General information |
|---|

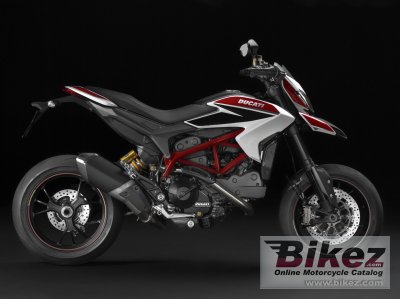

| Model: | Ducati Hypermotard SP |
| Year: | 2013 |
| Category: | Super motard |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 821.10 ccm (50.10 cubic inches) |
| Engine type: | V2, four-stroke |
| Power: | 110.00 HP (80.3 kW)) @ 9250 RPM |
| Torque: | 89.00 Nm (9.1 kgf-m or 65.6 ft.lbs) @ 7750 RPM |
| Compression: | 12.8:1 |
| Bore x stroke: | 88.0 x 67.5 mm (3.5 x 2.7 inches) |
| Fuel system: | Injection. Magneti Marelli electronic fuel injection system. Throttle bodies with full Ride by Wire system |
| Fuel control: | Desmodromic valve control |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Slipper and self-servo wet multiplate clutch mechanically operated |
| Driveline: | Chain, Front sprocket 15, Rear sprocket 45. Primary drive: Straight cut gears, Ratio 1.85. |
| Emission details: | Euro 3 |
| Exhaust system: | Single stainless steel muffler with catalytic converter and two lambda probes. |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tubular steel Trellis frame |
| Rake (fork angle): | 25.5° |
| Trail: | 104 mm (4.1 inches) |
| Front suspension: | Marzocchi 50 mm pressurized and fully adjustable usd fork with hard anodized aluminium lightweight slider |
| Rear suspension: | Progressive linkage with fully adjustable Ohlins monoshock. Aluminium single-sided swingarm |
| Front tyre dimensions: | 120/70-17 |
| Rear tyre dimensions: | 180/55-17 |
| Front brakes: | Double disc. ABS. Floating discs. Four-piston calipers. Radially mounted. |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. ABS. Two-piston calipers. |
| Rear brakes diameter: | 245 mm (9.6 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 171.0 kg (377.0 pounds) |
| Weight incl. oil, gas, etc: | 194.0 kg (427.7 pounds) |
| Power/weight ratio: | 0.6433 HP/kg |
| Seat height: | 890 mm (35.0 inches) If adjustable, lowest setting. |
| Wheelbase: | 1,500 mm (59.1 inches) |
| Fuel capacity: | 16.00 litres (4.23 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Instruments: | Multifunction digital dashboard with white backlight, composed of LCD segments for rev counter and a Dot-Matrix area for all other information. |
| Factory warranty: | 2 years unlimited mileage |
| Color options: | White/red/black |
