| General information |
|---|

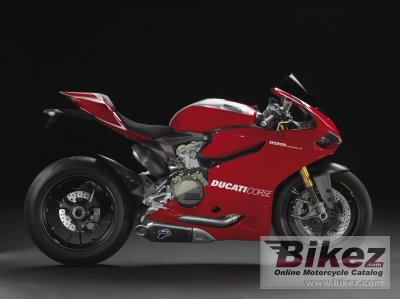

| Model: | Ducati 1199 Panigale R |
| Year: | 2013 |
| Category: | Sport |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 1198.00 ccm (73.10 cubic inches) |
| Engine type: | V2, four-stroke |
| Power: | 195.00 HP (142.3 kW)) @ 10750 RPM |
| Torque: | 132.00 Nm (13.5 kgf-m or 97.4 ft.lbs) @ 9000 RPM |
| Compression: | 12.5:1 |
| Bore x stroke: | 112.0 x 60.8 mm (4.4 x 2.4 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. Mitsubishi electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies. |
| Fuel control: | Desmodromic valve control |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Slipper and self-servo wet multiplate clutch with hydraulic control |
| Driveline: | Chain 525; Front sprocket 15; Rear sprocket 39. Primary drive: Straight cut gears, Ratio 1.77. |
| Emission details: | Euro 3 (Europe) - USA |
| Exhaust system: | 2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers with alumimum outer sleeves |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Monocoque Aluminium |
| Rake (fork angle): | 24.0° |
| Trail: | 100 mm (3.9 inches) |
| Front suspension: | Ohlins NIX30 43mm with TiN, fully adjustable usd fork. Electronic compression and rebound damping adjustment |
| Rear suspension: | Fully adjustable Ohlins TTX36 unit. Electronic compression and rebound damping adjustment. Adjustable linkage |
| Front tyre dimensions: | 120/70-ZR17 |
| Rear tyre dimensions: | 200/55-ZR17 |
| Front brakes: | Double disc. ABS. Floating discs. Radially mounted. |
| Front brakes diameter: | 330 mm (13.0 inches) |
| Rear brakes: | Single disc. ABS. Two-piston calipers. |
| Rear brakes diameter: | 245 mm (9.6 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 165.0 kg (363.8 pounds) |
| Weight incl. oil, gas, etc: | 189.0 kg (416.7 pounds) |
| Power/weight ratio: | 1.1818 HP/kg |
| Seat height: | 825 mm (32.5 inches) If adjustable, lowest setting. |
| Wheelbase: | 1,437 mm (56.6 inches) |
| Fuel capacity: | 17.00 litres (4.49 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Instruments: | Digital unit with TFT colour display rev counter, speed, gear selected, odometer, etc. |
| Factory warranty: | 24 months unlimited mileage |
| Color options: | Red |
