2007 DB Motors Pirat AC 12-14 inch wheels specifications, pictures, reviews and rating

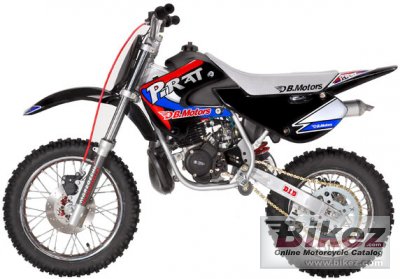

Picture credits - DB Motors. Click to submit more pictures.
|General moped information|
|Model:||DB Motors Pirat AC 12-14 inch wheels|
|Rating:||Do you know this bike?|
Click here to rate it. We miss 1 vote to show the rating.
|Engine and transmission|
|Displacement:||49.80 ccm (3.04 cubic inches)|
|Engine type:||Single cylinder, two-stroke|
|Power:||11.00 HP (8.0 kW)) @ 13500 RPM|
|Bore x stroke:||39.0 x 41.7 mm (1.5 x 1.6 inches)|
|Fuel system:||Carburettor. Dell’orto PHBG 19|
|Lubrication system:||EURO unleaded Nc 623-02 R.O.N. 95. Oil and premium grade gasoline mixture at 2%|
|Exhaust system:||Racing-type with aluminium muffler|
|Chassis, suspension, brakes and wheels|
|Frame type:||Single steel beam frame|
|Front suspension:||Magnum 32mm hydraulic telescopic fork|
|Rear suspension:||Special racing Paioli gas-operated shock|
|Front tyre dimensions:||2.50-14|
|Rear tyre dimensions:||3.00-12|
|Front brakes:||Single disc. 180 mm disc brake with hydr. master cylinder and calliper|
|Front brakes diameter:||180 mm (7.1 inches)|
|Rear brakes:||Single disc. 160 mm disc brake with hydr. master cylinder and caliper|
|Rear brakes diameter:||160 mm (6.3 inches)|
|Physical measures and capacities|
|Dry weight:||44.0 kg (97.0 pounds)|
|Power/weight ratio:||0.2500 HP/kg|
|Seat height:||730 mm (28.7 inches) If adjustable, lowest setting.|
|Overall height:||940 mm (37.0 inches)|
|Overall length:||1,485 mm (58.5 inches)|
|Overall width:||300 mm (11.8 inches)|
|Wheelbase:||987 mm (38.9 inches)|
|Fuel capacity:||4.20 litres (1.11 gallons)|
