| General moped information |
|---|

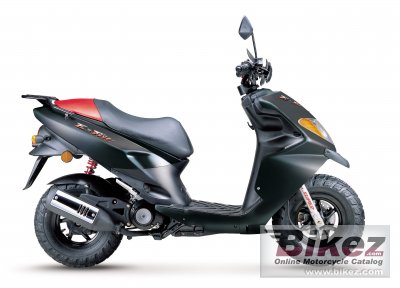

| Model: | Daelim E-Five ATS |
| Year: | 2006 |
| Category: | Scooter |
| Rating: | 68.6 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 49.00 ccm (2.99 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Bore x stroke: | 39.0 x 41.4 mm (1.5 x 1.6 inches) |
| Fuel system: | Carburettor |
| Cooling system: | Air |
Transmission type,
final drive: | Belt |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Telescopic |
| Rear suspension: | Unit swing arm |
| Front tyre dimensions: | 130/90-10 |
| Rear tyre dimensions: | 130/90-10 |
| Front brakes: | Single disc |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Dry weight: | 86.0 kg (189.6 pounds) |
| Seat height: | 775 mm (30.5 inches) If adjustable, lowest setting. |
| Overall height: | 1,130 mm (44.5 inches) |
| Overall length: | 1,790 mm (70.5 inches) |
| Overall width: | 685 mm (27.0 inches) |
| Ground clearance: | 131 mm (5.2 inches) |
| Wheelbase: | 1,260 mm (49.6 inches) |
| Fuel capacity: | 6.00 litres (1.59 gallons) |
| Other specifications |
|---|
| Starter: | Kick |
