| CR&S' profilation of this bike |

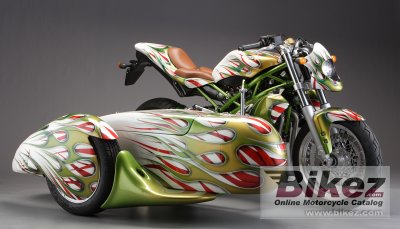

| An “accessory” to be applied to a VUN road version as if it were a luggage carrier trolley. We selected the aerodynamic shapes of a record-breaking sidecar of the ’40s*, converting it into a comfortable and large capacity “luggage compartment” that enables the destination to be reached with an adequate amount of kit, to then detach it rapidly and have fun with the unleashed motorbike. |
| General information |
|---|
| Model: | CR&S VUN PPB Sidecar | | Year: | 2012 | | Category: | Naked bike | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 652.00 ccm (39.79 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Engine details: | Bombardier-Rotax / CR and S type 654 | | Power: | 28.16 HP (20.6 kW)) | | Torque: | 37.00 Nm (3.8 kgf-m or 27.3 ft.lbs) | | Compression: | 9.7:1 | | Valves per cylinder: | 4 | | Fuel system: | Injection. IIntegrated CR and S/Walbro/Dell’Orto ignition/injection system, 52 mm throttle housing, twin injectors, twin spark | | Fuel control: | DOHC | | Lubrication system: | Dry sump | | Cooling system: | Liquid | | Gearbox: | 5-speed | Transmission type,
final drive: | Chain | | Clutch: | Multiple disc wet | | Exhaust system: | Stainless steel catalytic exhaust system (CR and S by QD) | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Steel tubes and machined light alloy plates compound | | Front suspension: | Tele-hydraulic fork with 46mm diameter rods | | Front suspension travel: | 120 mm (4.7 inches) | | Rear suspension: | Oscillating swingarm, single shock absorber | | Rear suspension travel: | 128 mm (5.0 inches) | | Front tyre dimensions: | 120/70-ZR17 | | Rear tyre dimensions: | 160/60-ZR17 | | Front brakes: | Single disc | | Front brakes diameter: | 320 mm (12.6 inches) | | Rear brakes: | Single disc | | Rear brakes diameter: | 220 mm (8.7 inches) | | Wheels: | Cast alumnium. 15 inch sidecar wheel. | | Physical measures and capacities |
|---|
| Seat height: | 780 mm (30.7 inches) If adjustable, lowest setting. | | Alternate seat height: | 820 mm (32.3 inches) If adjustable, highest setting. | | Overall length: | 1,980 mm (78.0 inches) | | Ground clearance: | 150 mm (5.9 inches) | | Wheelbase: | 1,368 mm (53.9 inches) | | Fuel capacity: | 12.50 litres (3.30 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Seat: | Neoprene seat | | Comments: | The CR and S VUN PPB is a sidecar to be fitted to a VUN Road Motorcyle. The VUN SIDECAR cannot carry any passenger, just goods. It’s not homologated by itself, when fastened together a CR and S VUN road motorcycle, must be legalized as new vehicle. | | Further information |
|---|
| Parts and accessories | Check out parts and accessories from our other partners. |
| Ask questions | Join the 12 CR&S VUN PPB Sidecar discussion group. |
| Insurance, loans, tests
| Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs |
