| General information |
|---|

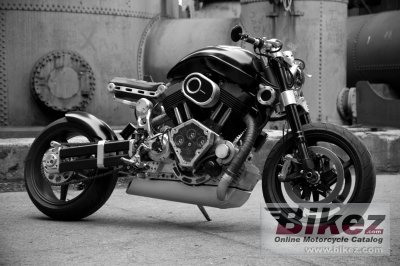

| Model: | Confederate X132 Hellcat |
| Year: | 2012 |
| Category: | Naked bike |
| Rating: | 73.9 out of 100. Show full rating and compare with other bikes |
| Price as new (MSRP): | US$ 45000. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 2163.23 ccm (132.00 cubic inches) |
| Engine type: | V2, four-stroke |
| Engine details: | X 132 Copperhead, 56° V-Twin. One-piece Forged Crank. |
| Power: | 132.00 HP (96.4 kW)) |
| Torque: | 196.62 Nm (20.0 kgf-m or 145.0 ft.lbs) |
| Bore x stroke: | 111.8 x 111.8 mm (4.4 x 4.4 inches) |
| Fuel system: | Injection |
| Fuel control: | DOHC |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Shaft drive (cardan) |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | 3 inch 120 wall hard steel backbone; 2 inch 120 wall hard steel downtube; Hand TIG wld fabrication |
| Rake (fork angle): | 27.5° |
| Front suspension: | Custom Marzocchi RAC 50mm Fork; Rebound and Compression Adjustable for Low and High Speed Actuation |
| Front suspension travel: | 81 mm (3.2 inches) |
| Rear suspension: | Custom Race Tech Coil-Over-Shock; Rebound and Compression Adjustable for Low and High Speed Actuation |
| Front tyre dimensions: | 120/70-ZR17 |
| Rear tyre dimensions: | 190/55-ZR17 |
| Front brakes: | Double disc. Dual Beringer 4 Piston AEROTEC Radial Calipers; Dual Beringer AERONAL Floating Stainless Steel Discs |
| Rear brakes: | Single disc. Single 2 Piston Brembo Monobloc Caliper; Cross-drilled Brembo Stainless Steel Disc |
| Wheels: | Carbon fiber |
| Physical measures and capacities |
|---|
| Dry weight: | 226.8 kg (500.0 pounds) |
| Power/weight ratio: | 0.5820 HP/kg |
| Seat height: | 711 mm (28.0 inches) If adjustable, lowest setting. |
| Oil capacity: | 4.90 litres (0.32 quarts) |
| Other specifications |
|---|
| Starter: | Electric |
| Instruments: | Motogadget Precision Analogue Tachometer; Digital Speed, Status |
| Light: | Integrated high intensity discharge headlamp |
| Seat: | Solo with Removable Passenger Seat |
| Color options: | Black/silver |
