| General information |
|---|

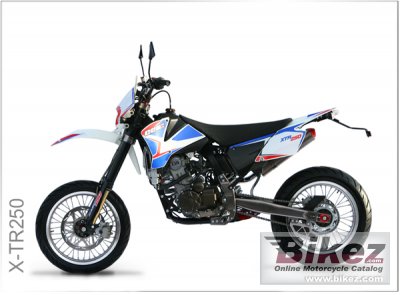

| Model: | CCM X-TR250 |
| Year: | 2009 |
| Category: | Super motard |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 249.40 ccm (15.22 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 23.60 HP (17.2 kW)) @ 7000 RPM |
| Compression: | 10.8:1 |
| Bore x stroke: | 70.0 x 64.8 mm (2.8 x 2.6 inches) |
| Valves per cylinder: | 2 |
| Fuel system: | Carburettor. Mikuni |
| Ignition: | Electronic ignition (CDI) |
| Lubrication system: | Pressure pump feed |
| Cooling system: | Liquid |
Transmission type,
final drive: | Chain |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Usd 41mm adjustable rebound / compression/ preload |
| Front suspension travel: | 300 mm (11.8 inches) |
| Rear suspension: | Rebound / compression / preload |
| Rear suspension travel: | 300 mm (11.8 inches) |
| Front brakes: | Single disc |
| Rear brakes: | Single disc |
| Physical measures and capacities |
|---|
| Dry weight: | 113.0 kg (249.1 pounds) |
| Power/weight ratio: | 0.2088 HP/kg |
| Seat height: | 940 mm (37.0 inches) If adjustable, lowest setting. |
| Ground clearance: | 280 mm (11.0 inches) |
| Wheelbase: | 1,505 mm (59.3 inches) |
| Fuel capacity: | 8.60 litres (2.27 gallons) |
| Other specifications |
|---|
| Starter: | Electric & kick |
