| General information |
|---|

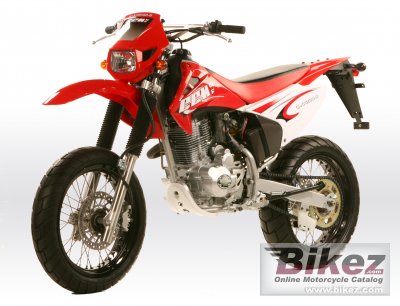

| Model: | CCM C-XR230-S |
| Year: | 2008 |
| Category: | Super motard |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 230.00 ccm (14.03 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 18.00 HP (13.1 kW)) |
| Compression: | 9.2:1 |
| Fuel system: | Carburettor |
| Fuel control: | DOHC |
| Ignition: | Electronic ignition (CDI) |
| Cooling system: | Air |
Transmission type,
final drive: | Chain |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Conventional 40mm |
| Rear suspension: | Single shock - adjustable preload |
| Front brakes: | Single disc |
| Rear brakes: | Single disc |
| Physical measures and capacities |
|---|
| Dry weight: | 118.0 kg (260.1 pounds) |
| Power/weight ratio: | 0.1525 HP/kg |
| Seat height: | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Wheelbase: | 1,350 mm (53.1 inches) |
| Fuel capacity: | 8.80 litres (2.32 gallons) |
| Other specifications |
|---|
| Comments: | Wheels 17´ and 17´. |
