FullBikeName

Cargobike AS125 2013


2013 Cargobike AS125 specifications, pictures, reviews and rating

2013 Cargobike AS125

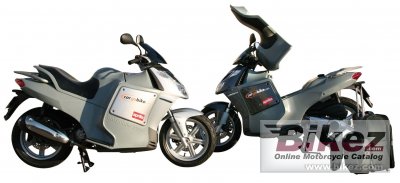

Picture credits - Cargobike. Click to submit more pictures.

   Show big 2013 Cargobike AS125 picture
2013 Cargobike AS125
Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
Tip a friend
List related bikes


Cargobike's profilation of this bike
The Cargobike is a scooter with a storage compartment built into its structure that allows the load to be centered between the two wheels, lowering the center of gravity and thus optimizing balance and handling.

General information
Model:Cargobike AS125
Year:2013
Category:Allround
Rating:Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating.
Engine and transmission
Displacement:125.00 ccm (7.63 cubic inches)
Engine type:Single cylinder, four-stroke
Power:14.75 HP (10.8 kW)) @ 9500 RPM
Torque:11.00 Nm (1.1 kgf-m or 8.1 ft.lbs) @ 8250 RPM
Compression:12.5:1
Bore x stroke:57.0 x 48.6 mm (2.2 x 1.9 inches)
Valves per cylinder:4
Fuel system:Carburettor
Fuel control:Overhead Cams (OHC)
Ignition:CDI with automatic advance
Cooling system:Liquid
Gearbox:Automatic
Transmission type,
final drive:
Belt
Clutch:Automatic centrifugal dry clutch. Automatic torque converter gearbox
Emission details:Euro 3
Chassis, suspension, brakes and wheels
Frame type:Double tube single cradle frame in high tensile strength steel
Front suspension:Hydraulic telescopic fork with 35 mm stanchions
Front wheel travel:100 mm (3.9 inches)
Rear suspension:Engine unit acting as swinging arm. Double hydraulic shock absorber with 4 preload settings.
Rear wheel travel:80 mm (3.1 inches)
Front tyre:120/70-15
Rear tyre:130/80-15
Front brakes:Single disc. Twin piston floating calipers
Front brakes diameter:260 mm (10.2 inches)
Rear brakes:Single disc. Twin piston opposed calipers
Rear brakes diameter:220 mm (8.7 inches)
Wheels:Light alloy wheels
Seat:Two person seat
Physical measures and capacities
Dry weight:148.0 kg (326.3 pounds)
Power/weight ratio:0.0997 HP/kg
Seat height:820 mm (32.3 inches) If adjustable, lowest setting.
Overall length:1,985 mm (78.1 inches)
Overall width:880 mm (34.6 inches)
Wheelbase:1,360 mm (53.5 inches)
Fuel capacity:9.00 litres (2.38 gallons)
Reserve fuel capacity:1.50 litres (0.40 gallons)
Other specifications
Color options:Excalibur gray, Shot gray, Moka black
Starter:Electric
Electrical:12 Volt
Carrying capacity:150 liter storage compartment. Up to 80 kg.
Comments:French made modification of an Aprilia SportCity scooter.
