| General information |
|---|

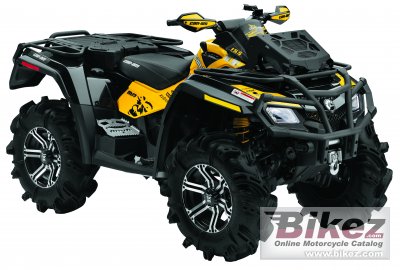

| Model: | Can-Am Outlander 800R X MR |
| Year: | 2011 |
| Category: | ATV |
| Rating: | 68 out of 100. Show full rating and compare with other bikes |
| Price as new (MSRP): | US$ 13099. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 799.90 ccm (48.81 cubic inches) |
| Engine type: | V2, four-stroke |
| Engine details: | Rotax V-twin engine |
| Bore x stroke: | 91.0 x 62.0 mm (3.6 x 2.4 inches) |
| Fuel system: | Injection. 46-mm Throttle Body, 2 Siemens VDO injectors |
| Fuel control: | SOHC |
| Ignition: | 650-watt magneto |
| Cooling system: | Liquid |
| Driveline: | CVT, sub-transmission with high, low, park, neutral and reverse. Standard engine braking. Selectable 2w/4w shaft driven with Visco-lok front differential. |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | SST |
| Front suspension: | Double A-arm. Air Control Suspension (ACS) |
| Rear suspension: | TTI independent. Air Control Suspension (ACS) |
| Front tyre dimensions: | 26/8-12 |
| Rear tyre dimensions: | 26/10-12 |
| Front brakes: | Double disc. 2 inboard hydraulic discs |
| Rear brakes: | Single disc. 1 inboard hydraulic discs |
| Wheels: | 14-inch (35.6 cm) ITP cast-aluminum wheels. 30-inch (76.2 cm) Gorilla Axle Silverback tires. |
| Physical measures and capacities |
|---|
| Dry weight: | 302.0 kg (665.8 pounds) |
| Seat height: | 876 mm (34.5 inches) If adjustable, lowest setting. |
| Overall length: | 2,184 mm (86.0 inches) |
| Overall width: | 1,168 mm (46.0 inches) |
| Ground clearance: | 305 mm (12.0 inches) |
| Wheelbase: | 1,295 mm (51.0 inches) |
| Fuel capacity: | 16.28 litres (4.30 gallons) |
| Oil capacity: | 4.50 litres (0.30 quarts) |
| Other specifications |
|---|
| Instruments: | Multi-function digital LCD gauge: Speedometer, tachometer (bar graph RPM, bottom bar numerical RPM), odometer, trip and hour meters, diagnostic center, gear position, engine hour meter, 4x4 indicator, temperature and engine lights, fuel gauge, clock, auto shut off after 15 minutes |
| Light: | 2 fender mounted headlamps (35W) with tail light / brake light |
| Carrying capacity: | Front: rack 100 lb (45 kg) Rear rack: 200 lb (90 kg). Rear storage 5.3 US gal (20 L). |
| Factory warranty: | 6 months limited factory warranty |
| Color options: | Black/yellow |
| Comments: | Dual-mode Dynamic Power Steering (DPS). Integrated Snorkel System. BRP XL3000 winch with roller fairlead and wired remote control. |
