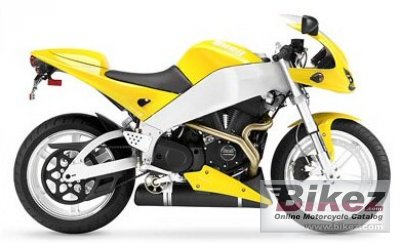

Model: Buell Firebolt XB9R Year: 2005 Category: Sport Rating: 74.4 out of 100. Show full rating and compare with other bikes Price as new (MSRP): US$ 8695. Prices depend on country, taxes, accessories, etc. Displacement :984.00 ccm (60.04 cubic inches) Engine type: V2, four-stroke Power: 92.00 HP (67.2 kW )) @ 7500 RPM Torque :94.92 Nm (9.7 kgf-m or 70.0 ft.lbs) @ 5500 RPM Compression :10.0:1 Bore x stroke :3.5 x 3.1 mm (0.1 x 0.1 inches) Valves per cylinder:2 Fuel system: Injection. 45 mm down draft DDFI II fuel injection Fuel control: OHV Lubrication system: Dry sump Cooling system: Oil & air Gearbox: 5-speed Transmission type, Shaft drive (cardan) Clutch: Wet, multi-plate, compensated Exhaust system: Tuned, tri-pass resonance chamber Frame type: Aluminum frame with Uniplanar™ powertrain vibration isolation system - Fuel in Frame Rake (fork angle): 21.0° Trail: 84 mm (3.3 inches) Front suspension : 43 mm Showa® inverted fork with adjustable compression damping, rebound damping and spring preload Front suspension travel: 120 mm (4.7 inches) Rear suspension : Showa coil-over monoshock with remote, underseat reservoir and adjustable compression damping, rebound damping and spring preload Rear suspension travel: 127 mm (5.0 inches) Front tyre dimensions: 120/70-ZR17 Rear tyre dimensions: 180/55-ZR17 Front brakes: Single disc. ZTL™ type brake, 6-piston, fixed caliper, single-sided, inside out, stainless steel, floating rotor Front brakes diameter: 336 mm (13.2 inches) Rear brakes: Single disc. stainless steel, single piston, floating caliper, fixed rotor Rear brakes diameter: 240 mm (9.4 inches) Dry weight: 174.6 kg (385.0 pounds) Power/weight ratio: 0.5268 HP/kg Seat height: 775 mm (30.5 inches) If adjustable, lowest setting. Overall length: 1,935 mm (76.2 inches) Overall width: 716 mm (28.2 inches) Ground clearance: 110 mm (4.4 inches) Wheelbase :1,321 mm (52.0 inches) Fuel capacity: 14.00 litres (3.70 gallons) Starter: Electric Color options: Sunfire Yellow with Sky White tank badge Parts and accessories Check out parts and accessories from our other partners. Ask questions Join the 05 Buell Firebolt XB9R discussion group. Insurance, loans, tests
Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc. Related bikes List related bikes for comparison of specs
Rating sample for this Buell bike
Engine performance for the 2005 Buell Firebolt XB9R:Click here for complete rating.
