Buell Firebolt XB12R 2009

Picture credits - Buell. Click to submit more pictures.

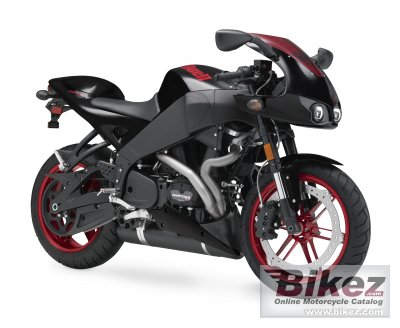

2009 Buell Firebolt XB12R

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes

Buell's profilation of this bike

This is a motorcycle for riders that value the light weight and razor sharp agility of a sportbike, but crave the look, sound and feel of an air-cooled, 45º V-Twin. Its torque-rich powerplant, intuitive handling and proven reliability make it a potent canyon carver.

General information
Model:	Buell Firebolt XB12R
Year:	2009
Category:	Naked bike
Rating:	69.3 out of 100. Show full rating and compare with other bikes
Safety:	See our safety campaign with the high safety rated bikes in this category.
Engine and transmission
Displacement:	1202.88 ccm (73.40 cubic inches)
Engine type:	V2
Stroke:	4
Power:	103.00 HP (75.2 kW)) @ 6800 RPM
Torque:	113.90 Nm (11.6 kgf-m or 84.0 ft.lbs) @ 6500 RPM
Compression:	10.0:1
Bore x stroke:	88.9 x 96.8 mm (3.5 x 3.8 inches)
Fuel system:	Injection. 49 mm down draft DDFI III fuel injection
Valves per cylinder:	2
Fuel control:	OHV
Starter:	Electric
Cooling system:	Oil & air
Gearbox:	5-speed
Transmission type final drive:	Belt
Clutch:	Wet, multi-plate, compensated
Physical measures
Overall length:	1,935 mm (76.2 inches)
Overall width:	714 mm (28.1 inches)
Ground clearance:	110 mm (4.4 inches)
Wheelbase:	1,321 mm (52.0 inches)
Chassis and dimensions
Frame type:	Aluminum frame with Uniplanar™ powertrain vibration isolation system, fuel in frame
Rake (fork angle):	21.0°
Front suspension:	43 mm Showa inverted forks with adjustable compression damping, rebound damping and spring preload
Front suspension travel:	120 mm (4.7 inches)
Rear suspension:	Showa coil-over monoshock with remote, under-seat reservoir and adjustable compression damping, rebound damping and spring preload
Rear suspension travel:	127 mm (5.0 inches)
Front tyre dimensions:	120/70-ZR17
Rear tyre dimensions:	180/55-ZR17
Front brakes:	Single disc. ZTL2-type brake, 8-piston, 4 pads, fixed caliper, single-sided, inside out, stainless steel, floating rotor
Rear brakes:	Single disc. Two-piston, direct mount caliper; stainless steel, fixed rotor
Rear brakes diameter:	240 mm (9.4 inches)
Exhaust system:	Tuned, tri-pass resonance chamber with InterActive valve and mass-centralized mounting
Speed and acceleration
Other specifications
Fuel capacity:	14.45 litres (3.82 gallons)
Fuel consumption pr. 10 km (6.2 miles):	4.12 litres (1.09 gallons)
Color options:	Midnight Black, Arctic White
Further information
Parts and accessories	Check out parts and accessories from our partners.
Ask questions	Join the 09 Buell Firebolt XB12R discussion group, the new Buell forum at Bikez.name or the new Naked bike forum at Bikez.name.
Insurance, loans, tests	Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikes	List related bikes for comparison of specs

Discussions for every bike

Bikez has discussion forums for every bike. View comments, questions and answers at the 2009 Buell Firebolt XB12R discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review.

If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.

Rating sample for this Buell bike
Racing track capabilities for the 2009 Buell Firebolt XB12R: (63.4 out of 100) Click here for complete rating. You can also compare bikes.
