| Borile's profilation of this bike |
| We designed a very small tank to combine aesthetical appearance with a very short drive, the major quantity of the fuel is under the seat, totally 8 litres.
|
| General information |
|---|

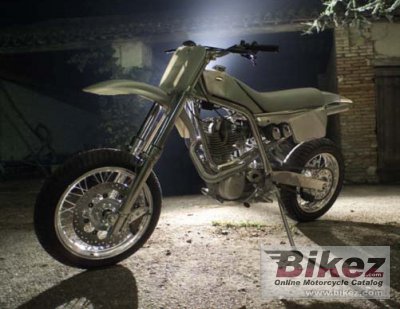

| Model: | Borile B500MT | | Year: | 2008 | | Category: | Enduro / offroad | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 487.00 ccm (29.72 cubic inches) | | Engine type: | Single cylinder | | Stroke: | 4 | | Compression: | 10.5:1 | | Bore x stroke: | 87.0 x 82.0 mm (3.4 x 3.2 inches) | | Fuel system: | Carburettor. Mikuni TM 40 | | Valves per cylinder: | 4 | | Fuel control: | OHC | | Ignition: | Ducati digital | | Starter: | Kick | | Lubrication system: | By pump | | Cooling system: | Air | | Gearbox: | 5-speed | Transmission type
final drive: | Chain | | Clutch: | Multidisc in oil bath | | Physical measures |
|---|
| Dry weight: | 112.0 kg (246.9 pounds) | | Seat height: | 890 mm (35.0 inches) If adjustable, lowest setting. | | Overall length: | 2,120 mm (83.5 inches) | | Overall width: | 830 mm (32.7 inches) | | Ground clearance: | 250 mm (9.8 inches) | | Wheelbase: | 1,500 mm (59.1 inches) | | Chassis and dimensions |
|---|
| Frame type: | Cradle of round tubes in 7020 alloy | | Front suspension: | Ceriani upside down fork | | Rear suspension: | Mono Paioli with no levers | | Front tyre dimensions: | 120/70-17 | | Rear tyre dimensions: | 150/70-17 | | Front brakes: | Single disc | | Front brakes diameter: | 315 mm (12.4 inches) | | Rear brakes: | Single disc | | Rear brakes diameter: | 220 mm (8.7 inches) | | Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 8.00 litres (2.11 gallons) | | Further information |
|---|
