| General information |
|---|

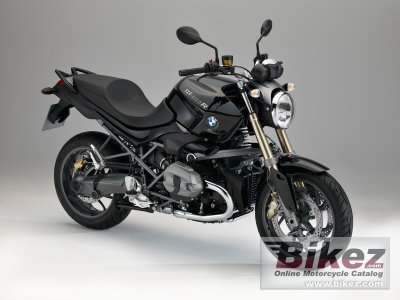

| Model: | BMW R 1200 R |
| Year: | 2013 |
| Category: | Naked bike |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Price as new (MSRP): | US$ 13975. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 1170.00 ccm (71.39 cubic inches) |
| Engine type: | Two cylinder boxer, two-stroke |
| Power: | 87.00 HP (63.5 kW)) @ 7500 RPM |
| Torque: | 119.00 Nm (12.1 kgf-m or 87.8 ft.lbs) @ 6000 RPM |
| Compression: | 12.0:1 |
| Bore x stroke: | 101.0 x 73.0 mm (4.0 x 2.9 inches) |
| Fuel system: | Injection. Electronic intake pipe injection / BMS-K+ digital engine management with overrun fuel cut-off, twin-spark ignition |
| Fuel control: | DOHC |
| Lubrication system: | Dry sump |
| Cooling system: | Oil & air |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Shaft drive (cardan) |
| Clutch: | Single dry plate clutch, hydraulically operated |
| Driveline: | Constant mesh |
| Fuel consumption: | 4.10 litres/100 km (24.4 km/l or 57.37 mpg) |
| Greenhouse gases: | 95.1 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Emission details: | Closed-loop 3-way catalytic converter, emission standard EU-3 |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Two-section frame consisting of front and rear sections, load-bearing engine-gearbox unit |
| Rake (fork angle): | 27.1° |
| Trail: | 119 mm (4.7 inches) |
| Front suspension: | BMW Motorrad Telelever |
| Front suspension travel: | 120 mm (4.7 inches) |
| Rear suspension: | Cast aluminium single-sided swing arm with BMW Motorrad Paralever |
| Rear suspension travel: | 140 mm (5.5 inches) |
| Front tyre dimensions: | 120/70-17 |
| Rear tyre dimensions: | 180/55-17 |
| Front brakes: | Double disc. Floating discs. Four-piston calipers. |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. Floating disc. Two-piston calipers. |
| Rear brakes diameter: | 265 mm (10.4 inches) |
| Wheels: | Cast aluminium wheels |
| Physical measures and capacities |
|---|
| Dry weight: | 198.0 kg (436.5 pounds) |
| Weight incl. oil, gas, etc: | 223.0 kg (491.6 pounds) |
| Power/weight ratio: | 0.4394 HP/kg |
| Seat height: | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall height: | 1,273 mm (50.1 inches) |
| Overall length: | 2,145 mm (84.4 inches) |
| Overall width: | 906 mm (35.7 inches) |
| Wheelbase: | 1,495 mm (58.9 inches) |
| Fuel capacity: | 18.00 litres (4.76 gallons) |
| Reserve fuel capacity: | 3.00 litres (0.79 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Electrical: | 12 V / 14 Ah, maintenance-free battery. |
| Color options: | Blue, Beige, Black/white, Silver |
