| General information |
|---|

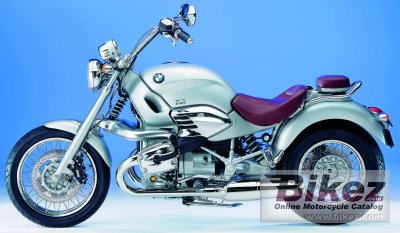

| Model: | BMW R 1200 C Classic |
| Year: | 2005 |
| Category: | Custom / cruiser |
| Rating: | 70.1 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 1170.00 ccm (71.39 cubic inches) |
| Engine type: | Two cylinder boxer, four-stroke |
| Power: | 60.34 HP (44.0 kW)) @ 5000 RPM |
| Torque: | 98.00 Nm (10.0 kgf-m or 72.3 ft.lbs) @ 3000 RPM |
| Top speed: | 168.0 km/h (104.4 mph) |
| Compression: | 10.0:1 |
| Bore x stroke: | 101.0 x 73.0 mm (4.0 x 2.9 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. Electronic intake pipe injection/digital engine management: Bosch Motronic MA 2.4 with overrun fuel cut-off, twin spark ignition |
| Cooling system: | Oil & air |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Shaft drive (cardan) |
| Clutch: | Single-disc dry clutch, hydraulically operated |
| Fuel consumption: | 4.60 litres/100 km (21.7 km/l or 51.13 mpg) |
| Greenhouse gases: | 106.7 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Three-section composite frame consisting of front and rear section, load bearing engine. |
| Rake (fork angle): | 29.5° |
| Trail: | 86 mm (3.4 inches) |
| Front suspension: | BMW Motorrad Telelever |
| Front suspension travel: | 35 mm (1.4 inches) |
| Rear suspension: | Die-cast steel single-sided swinging arm with BMW Motorrad Monolever |
| Rear suspension travel: | 135 mm (5.3 inches) |
| Front tyre dimensions: | 100/90-ZR18 |
| Rear tyre dimensions: | 170/80-ZR15 |
| Front brakes: | Double disc |
| Front brakes diameter: | 305 mm (12.0 inches) |
| Rear brakes: | Double disc |
| Rear brakes diameter: | 285 mm (11.2 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 238.0 kg (524.7 pounds) |
| Power/weight ratio: | 0.2535 HP/kg |
| Seat height: | 740 mm (29.1 inches) If adjustable, lowest setting. |
| Overall height: | 1,130 mm (44.5 inches) |
| Overall length: | 2,340 mm (92.1 inches) |
| Overall width: | 1,050 mm (41.3 inches) |
| Wheelbase: | 1,650 mm (65.0 inches) |
| Fuel capacity: | 17.50 litres (4.62 gallons) |
| Other specifications |
|---|
