12 BMW K 1300 R Carbon specificationsBMW K 1300 R Carbon 2012

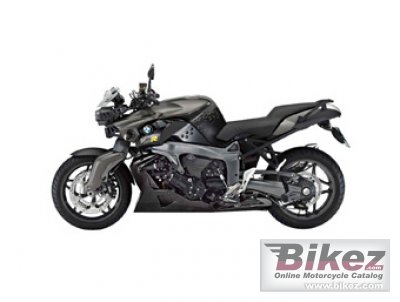

2012 BMW K 1300 R Carbon photo
Picture credits - BMW. Click to submit more pictures.
2012 BMW K 1300 R Carbon

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



BMW's profilation of this bike
Nothing matches the sleek, dynamic look of the K 1300 R better than the black, silky finish of BMW Motorrad’s top quality carbon parts.

General information
Model:BMW K 1300 R Carbon
Year:2012
Category:Naked bike
Rating:75.5 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:1293.00 ccm (78.90 cubic inches)
Engine type:In-line four, four-stroke
Power:170.31 HP (124.3 kW)) @ 9250 RPM
Torque:140.00 Nm (14.3 kgf-m or 103.3 ft.lbs) @ 8250 RPM
Compression:13.0:1
Bore x stroke:80.0 x 64.3 mm (3.1 x 2.5 inches)
Valves per cylinder:4
Fuel system:Injection. Electronic intake pipe injection/digital engine management including knock sensor (BMS-K)
Fuel control:DOHC
Lubrication system:Dry sump
Cooling system:Liquid
Gearbox:6-speed
Transmission type,
final drive:
Shaft drive (cardan)
Clutch:Multiple-disc clutch in oil bath, hydraulically operated
Fuel consumption:5.00 litres/100 km (20.0 km/l or 47.04 mpg)
Greenhouse gases:116.0 CO2 g/km. (CO2 - Carbon dioxide emission)
Emission details:Closed-loop 3-way catalytic converter, emission standard EU-3
Exhaust system:Stainless steel exhaust system
Chassis, suspension, brakes and wheels
Frame type:Bridge-type, cast aluminium, load bearing engine
Rake (fork angle):29.6°
Trail:104 mm (4.1 inches)
Front suspension:BMW Motorrad Duolever
Front suspension travel:115 mm (4.5 inches)
Rear suspension:Cast aluminium single-sided swing arm with BMW Motorrad Paralever
Rear suspension travel:135 mm (5.3 inches)
Front tyre dimensions:120/70-ZR17
Rear tyre dimensions:180/55-ZR17
Front brakes:Double disc. Optional ABS
Front brakes diameter:320 mm (12.6 inches)
Rear brakes:Single disc. Optional ABS
Rear brakes diameter:265 mm (10.4 inches)
Wheels:Cast aluminium
Physical measures and capacities
Dry weight:217.0 kg (478.4 pounds)
Weight incl. oil, gas, etc:243.0 kg (535.7 pounds)
Power/weight ratio:0.7848 HP/kg
Seat height:820 mm (32.3 inches) If adjustable, lowest setting.
Alternate seat height:790 mm (31.1 inches) If adjustable, highest setting.
Overall height:1,095 mm (43.1 inches)
Overall length:2,228 mm (87.7 inches)
Overall width:856 mm (33.7 inches)
Wheelbase:1,585 mm (62.4 inches)
Fuel capacity:19.00 litres (5.02 gallons)
Reserve fuel capacity:4.00 litres (1.06 gallons)
Other specifications
Starter:Electric
Electrical:12 V / 14 Ah, maintenance-free battery.
Seat:One piece dual seat
Color options:Carbon black
Comments:One key system for ignition, steering, fuel filler cap and seat lock.
Further information
Parts and accessories Check out parts and accessories from our other partners.
Ask questionsJoin the 12 BMW K 1300 R Carbon discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Free motorcycle classifieds

Click here to sell a used 2012 BMW K 1300 R Carbon or advertise any other MC for sale. You can list all available BMW K 1300 R Carbon bikes and also sign up for e-mail notification when such motorcycles are advertised in the future. Ads with or without pictures are easy to create. Our classifieds are completely free with sections for every country in the world.

You can also check out our list of related motorbikes. Compare technical data. Look at photos. View your fellow riders' rating of the bike's reliability, design, engine performance, accident risk, repair cost, etc.


Rating sample for this BMW bike
Design and look for the 2012 BMW K 1300 R Carbon:


(84.5 out of 100)

Click here for complete rating. You can also compare bikes.
