09 Bimota DB6 R specificationsBimota DB6 R 2009

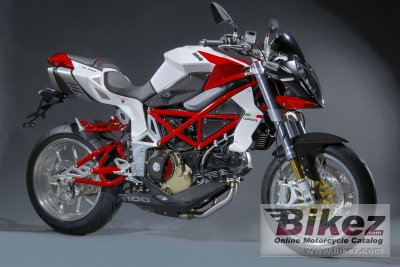

2009 Bimota DB6 R photo
Picture credits - Bimota. Click to submit more pictures.
   Show big 2009 Bimota DB6 R imageShow more 2009 Bimota DB6 R images
2009 Bimota DB6 R

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Bimota's profilation of this bike
The DB6R includes many new carbon fiber components including air conveyors for the radiator, fairing sides, belt-covers, clutch cover, front mudguard, plate holder and side covers.

General information
Model:Bimota DB6 R
Year:2009
Category:Sport
Rating:Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating.
Engine and transmission
Displacement:1079.00 ccm (65.84 cubic inches)
Engine type:V2, four-stroke
Compression:10.0:1
Bore x stroke:98.0 x 71.5 mm (3.9 x 2.8 inches)
Valves per cylinder:2
Fuel system:Injection. Walbro
Fuel control:Desmodromic valve control
Lubrication system:Wet Sump
Cooling system:Air
Transmission type,
final drive:
Chain
Clutch:Dry clutch Multi-disc with hydraulic actuation system
Exhaust system:2 in 1 in 2, inox
Chassis, suspension, brakes and wheels
Rake (fork angle):24.0
Front suspension:50 mm Marzocchi UD fork TiN fully adjustable
Rear suspension:Extreme Tech Monoshock fully adjustable, compression low/high speed
Front tyre dimensions:120/70-ZR17
Rear tyre dimensions:180/70-ZR17
Front brakes:Double disc
Front brakes diameter:320 mm (12.6 inches)
Rear brakes:Single disc
Rear brakes diameter:220 mm (8.7 inches)
Physical measures and capacities
Dry weight:170.0 kg (374.8 pounds)
Seat height:820 mm (32.3 inches) If adjustable, lowest setting.
Overall height:1,110 mm (43.7 inches)
Overall length:2,045 mm (80.5 inches)
Overall width:830 mm (32.7 inches)
Ground clearance:175 mm (6.9 inches)
Wheelbase:1,430 mm (56.3 inches)
Fuel capacity:16.00 litres (4.23 gallons)
Other specifications
Starter:Electric
