11 Bimota DB5R specificationsBimota DB5R 2011

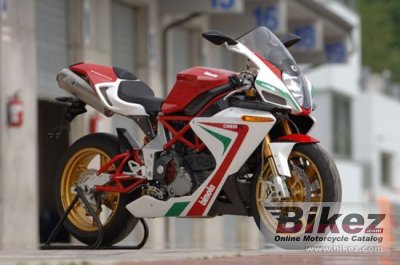

2011 Bimota DB5R photo
Picture credits - Bimota. Click to submit more pictures.
Show more 2011 Bimota DB5R images
2011 Bimota DB5R

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Bimota's profilation of this bike
The DB5R gets a taller ride height than the standard DB5 to make it turn in even quicker. This results in an even sportier ride.

General information
Model:Bimota DB5R
Year:2011
Category:Sport
Rating:Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating.
Engine and transmission
Displacement:1078.00 ccm (65.78 cubic inches)
Engine type:V2, four-stroke
Engine details:Ducati 1100DS engine. L-twin.
Power:95.00 HP (69.3 kW)) @ 7000 RPM
Torque:102.97 Nm (10.5 kgf-m or 76.0 ft.lbs) @ 5500 RPM
Max RPM:9000
Compression:10.1:1
Bore x stroke:98.0 x 71.5 mm (3.9 x 2.8 inches)
Valves per cylinder:2
Fuel system:Injection. Magneti Marelli-45mm throttle body
Fuel control:Desmodromic valve control
Lubrication system:Wet sump
Cooling system:Air
Gearbox:6-speed
Transmission type,
final drive:
Chain
Clutch:Slipper clutch
Exhaust system:2 in 1 in 2, inox
Chassis, suspension, brakes and wheels
Frame type:CrMo steel trellis, carbon fibre.
Rake (fork angle):24.0░
Trail:100 mm (3.9 inches)
Front suspension:43mm UD Íhlins TIN Coated Fork, fully adjustable (Pre-load, Compression, Rebound)
Front suspension travel:120 mm (4.7 inches)
Rear suspension:Íhlins Monoshock, fully adjustable (Pre-load - External Hydraulic Device, Compression, Rebound)
Rear suspension travel:120 mm (4.7 inches)
Front tyre dimensions:120/70-17
Rear tyre dimensions:180/55-17
Front brakes:Single disc. Brembo, 4-pistons, 4-pads with radial Brembo calipers
Front brakes diameter:320 mm (12.6 inches)
Rear brakes:Single disc. 2-pistons, 2-pads with Brembo caliper
Rear brakes diameter:230 mm (9.1 inches)
Wheels:Forged Alluminium
Physical measures and capacities
Weight incl. oil, gas, etc:170.0 kg (374.8 pounds)
Seat height:810 mm (31.9 inches) If adjustable, lowest setting.
Overall length:2,180 mm (85.8 inches)
Ground clearance:130 mm (5.1 inches)
Wheelbase:1,425 mm (56.1 inches)
Fuel capacity:16.00 litres (4.23 gallons)
Reserve fuel capacity:5.00 litres (1.32 gallons)
Other specifications
Starter:Electric
Color options:Red/white/green
