| Beta's profilation of this bike |
| Thanks to the experience acquired on the racing fields, the new Rev-3 is already a landmark in world trial championship, where it takes part as the only Italian factory. |
| General information |
|---|

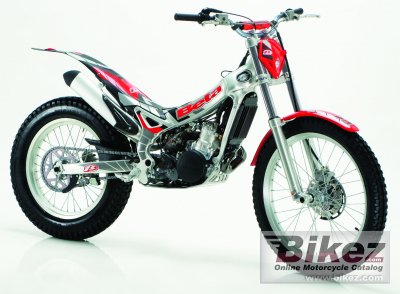

| Model: | Beta Rev-3 125 | | Year: | 2006 | | Category: | Trial | | Rating: | 71.2 out of 100. Show full rating and compare with other bikes | | Engine and transmission |
|---|
| Displacement: | 124.00 ccm (7.57 cubic inches) | | Engine type: | Single cylinder | | Stroke: | 2 | | Compression: | 14.0:1 | | Bore x stroke: | 54.0 x 54.0 mm (2.1 x 2.1 inches) | | Fuel system: | Carburettor. Mikuni VM26/208 | | Ignition: | Electronic | | Lubrication system: | Fuel mix 1.5% | | Cooling system: | Liquid | | Gearbox: | 6-speed | Transmission type
final drive: | Chain | | Clutch: | Wet multi-disc clutch with cush-drive rubber | | Physical measures |
|---|
| Dry weight: | 71.0 kg (156.5 pounds) | | Overall length: | 1,990 mm (78.3 inches) | | Overall width: | 850 mm (33.5 inches) | | Ground clearance: | 310 mm (12.2 inches) | | Wheelbase: | 1,310 mm (51.6 inches) | | Chassis and dimensions |
|---|
| Frame type: | Aluminium | | Front suspension: | Hydraulic fork | | Front suspension travel: | 185 mm (7.3 inches) | | Rear suspension: | Monoshock | | Rear suspension travel: | 165 mm (6.5 inches) | | Front brakes: | Single disc | | Front brakes diameter: | 185 mm (7.3 inches) | | Rear brakes: | Single disc | | Rear brakes diameter: | 175 mm (6.9 inches) | | Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 4.20 litres (1.11 gallons) | | Further information |
|---|
