12 Benelli TNT 1130 R specificationsBenelli TNT 1130 R 2012

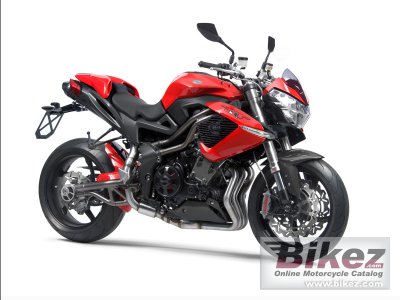

2012 Benelli TNT 1130 R photo
Picture credits - Benelli. Click to submit more pictures.
   Show big 2012 Benelli TNT 1130 R image
2012 Benelli TNT 1130 R

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



General information
Model:Benelli TNT 1130 R
Year:2012
Category:Naked bike
Rating:63.2 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:1131.00 ccm (69.01 cubic inches)
Engine type:In-line three, four-stroke
Engine details:Double overhead camshaft with balancer shaft
Power:157.80 HP (115.2 kW)) @ 10200 RPM
Torque:120.00 Nm (12.2 kgf-m or 88.5 ft.lbs) @ 8400 RPM
Bore x stroke:88.0 x 62.0 mm (3.5 x 2.4 inches)
Valves per cylinder:4
Fuel system:Injection. Electronic injection with three throttle bodies 53 mm
Ignition:Walbro ECUA-1
Lubrication system:Wet sump
Cooling system:Liquid
Gearbox:6-speed
Transmission type,
final drive:
Chain
Clutch:Dry clutch with hydraulic command with slipper device
Driveline:44/79 primary drive
Emission details:Euro 3
Exhaust system:With catalytic converter and oxigen sensor
Chassis, suspension, brakes and wheels
Frame type:Decomposable, front steel trestle, rear aluminium alloy casting
Rake (fork angle):25.0
Trail:95 mm (3.7 inches)
Front suspension:50 mm upside-down fork, with hydraulic rebound / compression and spring preload adjustments
Front suspension travel:120 mm (4.7 inches)
Rear suspension:Steel tube trestle swingarm, rear dumper with hydraulic adjustment (rebound, high and low speed compression) and spring preload assembled with progressive link
Rear suspension travel:120 mm (4.7 inches)
Front tyre dimensions:120/70-17
Rear tyre dimensions:180/55-17
Front brakes:Double disc. Floating Wave disk mm with radial monoblock 4 pistons calipers
Front brakes diameter:320 mm (12.6 inches)
Rear brakes:Single disc. Wave disk with double piston caliper
Rear brakes diameter:240 mm (9.4 inches)
Wheels:Aluminium alloy
Physical measures and capacities
Dry weight:208.0 kg (458.6 pounds)
Weight incl. oil, gas, etc:218.0 kg (480.6 pounds)
Power/weight ratio:0.7587 HP/kg
Seat height:830 mm (32.7 inches) If adjustable, lowest setting.
Overall height:1,050 mm (41.3 inches)
Overall length:2,100 mm (82.7 inches)
Overall width:790 mm (31.1 inches)
Ground clearance:135 mm (5.3 inches)
Wheelbase:1,443 mm (56.8 inches)
Fuel capacity:17.00 litres (4.49 gallons)
Reserve fuel capacity:4.00 litres (1.06 gallons)
Oil capacity:4.00 litres (0.26 quarts)
Other specifications
Starter:Electric
Color options:White/red
