| Arctic Cat's profilation of this bike |

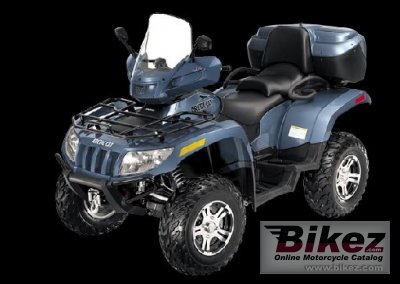

| The Arctic Cat TRV (Two Riders Vehicle) pioneered the concept of an ATV built to carry two riders in tandem. The only 3-in-1 ATV on the market allows you to ride tandem, or remove the seat and replace it with a SpeedRack, or for tougher chores, add a TBX-style box. |
| General information |
|---|
| Model: | Arctic Cat TRV 700 H1 EFI Cruiser |
| Year: | 2009 |
| Category: | ATV |
| Rating: | 73.3 out of 100. Show full rating and compare with other bikes |
| Price as new (MSRP): | US$ 9900. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 695.00 ccm (42.41 cubic inches) |
| Engine type: | V2, four-stroke |
| Bore x stroke: | 102.0 x 85.0 mm (4.0 x 3.3 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection |
| Fuel control: | Single Overhead Cams (SOHC) |
| Cooling system: | Liquid |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Double A-arm |
| Front wheel travel: | 254 mm (10.0 inches) |
| Rear suspension: | Double A-arm |
| Rear wheel travel: | 254 mm (10.0 inches) |
| Front tyre: | 25/8-10 |
| Rear tyre: | 25/10-12 |
| Front brakes: | Single disc |
| Rear brakes: | Single disc |
| Physical measures and capacities |
|---|
| Dry weight: | 343.8 kg (758.0 pounds) |
| Overall height: | 1,410 mm (55.5 inches) |
| Overall width: | 1,207 mm (47.5 inches) |
| Ground clearance: | 279 mm (11.0 inches) |
| Wheelbase: | 1,473 mm (58.0 inches) |
| Fuel capacity: | 20.81 litres (5.50 gallons) |
| Other specifications |
|---|
| Color options: | Green, red, olive |
| Starter: | Electric |
| Comments: | 4x4. Automatic CVT with EBS, Hi/Lo range and Reverse |
| Further information |
|---|
| Insurance costs | Get estimated US insurance cost with a quote from Allstate Motorcycle Insurance.
|
| Parts finder |
Chaparral provides online schematics & OEM parts for the US.
Motorcycle Superstore provides an easy-to-use parts finder. Ships to the US, Canada, UK and Australia.
MotoSport.com ships motorcycle parts and accessories to most countries.
Sixity.com has low prices and free shipping on ATV and motorcycle parts to the US.
Also check out our overview of motorcycle webshops at Bikez.info. |
| ATV parts | Sixity.com sells ATV parts with free shipping to the US. |
| Ask questions | Join the 09 Arctic Cat TRV 700 H1 EFI Cruiser discussion group or the general Arctic Cat discussion group. |
| Loans, tests, etc | Search the web for dealers, loan costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Arctic Cat bike
|
Value for money for the 2009 Arctic Cat TRV 700 H1 EFI Cruiser:
 (76.7 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
