| General information |
|---|

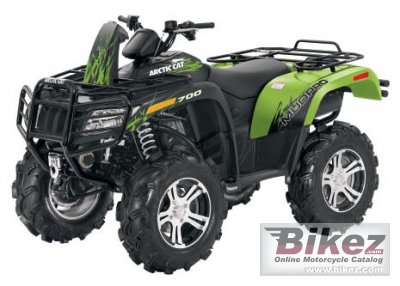

| Model: | Arctic Cat MudPro 700i LTD | | Year: | 2012 | | Category: | ATV | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 695.00 ccm (42.41 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Engine details: | 700 H1 EFI Engine | | Bore x stroke: | 102.0 x 85.0 mm (4.0 x 3.3 inches) | | Valves per cylinder: | 4 | | Fuel system: | Injection. EFI | | Fuel control: | SOHC | | Cooling system: | Liquid | | Gearbox: | Automatic | Transmission type,
final drive: | Belt | | Driveline: | Automatic CVT with EBS, Hi/Lo Range and Reverse. 2/4 WD + Diff Lock | | Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Double A-Arm | | Front suspension travel: | 254 mm (10.0 inches) | | Rear suspension: | Double A-Arm | | Rear suspension travel: | 254 mm (10.0 inches) | | Front tyre dimensions: | 28/9-14 | | Rear tyre dimensions: | 28/9-14 | | Front brakes: | Single disc | | Rear brakes: | Single disc | | Wheels: | 28´ Maxxis Zilla Tires, Aluminum Rims. | | Physical measures and capacities |
|---|
| Dry weight: | 354.0 kg (780.4 pounds) | | Overall height: | 1,316 mm (51.8 inches) | | Overall length: | 2,197 mm (86.5 inches) | | Overall width: | 1,206 mm (47.5 inches) | | Ground clearance: | 356 mm (14.0 inches) | | Wheelbase: | 1,270 mm (50.0 inches) | | Fuel capacity: | 21.60 litres (5.71 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Instruments: | Analoge/digital | | Carrying capacity: | Front Rack Capacity 100 lbs / 45.4 kg. Rear Rack Capacity 200 lbs / 90.8 kg. Towing Capacity: 1,050 lbs / 476.3 kg | | Color options: | Orange Metallic, Arctic Green Metallic | | Comments: | Front and Rear Bumpers, Winch, Snorkel Air Intake. Power steering. | | Further information |
|---|
| Parts and accessories | Check out parts and accessories from our other partners. |
| Ask questions | Join the 12 Arctic Cat MudPro 700i LTD discussion group. |
| Insurance, loans, tests
| Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs |
