Arctic Cat 700 S 20112011 Arctic Cat 700 S specifications, pictures, reviews and rating |

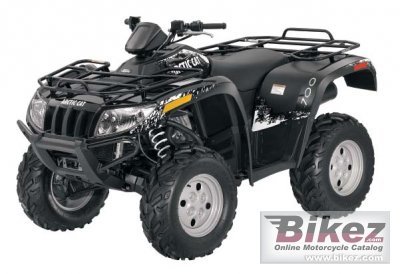

![]() Picture credits - Arctic Cat. Click to submit more pictures.
|
|
General information | |
---|---|
Model: | Arctic Cat 700 S |
Year: | 2011 |
Category: | ATV |
Rating: | Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
Price as new (MSRP): | US$ 9499. Prices depend on country, taxes, accessories, etc. |
Engine and transmission | |
Displacement: | 695.00 ccm (42.41 cubic inches) |
Engine type: | Single cylinder, four-stroke |
Bore x stroke: | 102.0 x 85.0 mm (4.0 x 3.3 inches) |
Valves per cylinder: | 4 |
Fuel system: | Injection. EFI |
Fuel control: | Single Overhead Cams (SOHC) |
Cooling system: | Liquid |
Gearbox: | Automatic |
Transmission type, final drive: | Belt |
Driveline: | Automatic CVT with EBS, Hi/Lo Range and Reverse. 2 WD/4 WD + Diff Lock |
Chassis, suspension, brakes and wheels | |
Front suspension: | Double A-Arm |
Front wheel travel: | 254 mm (10.0 inches) |
Rear suspension: | Double A-Arm |
Rear wheel travel: | 254 mm (10.0 inches) |
Front tyre: | 25/8-12 |
Rear tyre: | 25/10-12 |
Front brakes: | Single disc |
Rear brakes: | Single disc |
Physical measures and capacities | |
Dry weight: | 313.0 kg (690.0 pounds) |
Overall height: | 1,219 mm (48.0 inches) |
Overall length: | 2,154 mm (84.8 inches) |
Overall width: | 1,206 mm (47.5 inches) |
Ground clearance: | 127 mm (5.0 inches) |
Wheelbase: | 1,270 mm (50.0 inches) |
Fuel capacity: | 21.57 litres (5.70 gallons) |
Other specifications | |
Color options: | Advantage Timber Camo, Black |
Starter: | Electric |
Carrying capacity: | Front Rack Capacity 100 lbs / 45.4 kg. Rear Rack Capacity 200 lbs / 90.8 kg. Towing Capacity 1,050 lbs / 476.3 kg |
Comments: | Power Steering. Electric 2WD/4WD and Front Differential Lock. |
